AM-EN-48953 Cam Phaser Retainer - Camshaft Actuator Locking Tool for Ecotec/2010 Buick Lacrosse, 2010 Chevy Equinox, 2010 GMC Terrain fit with 2.0L, 2.4L ECOTEC Engines.

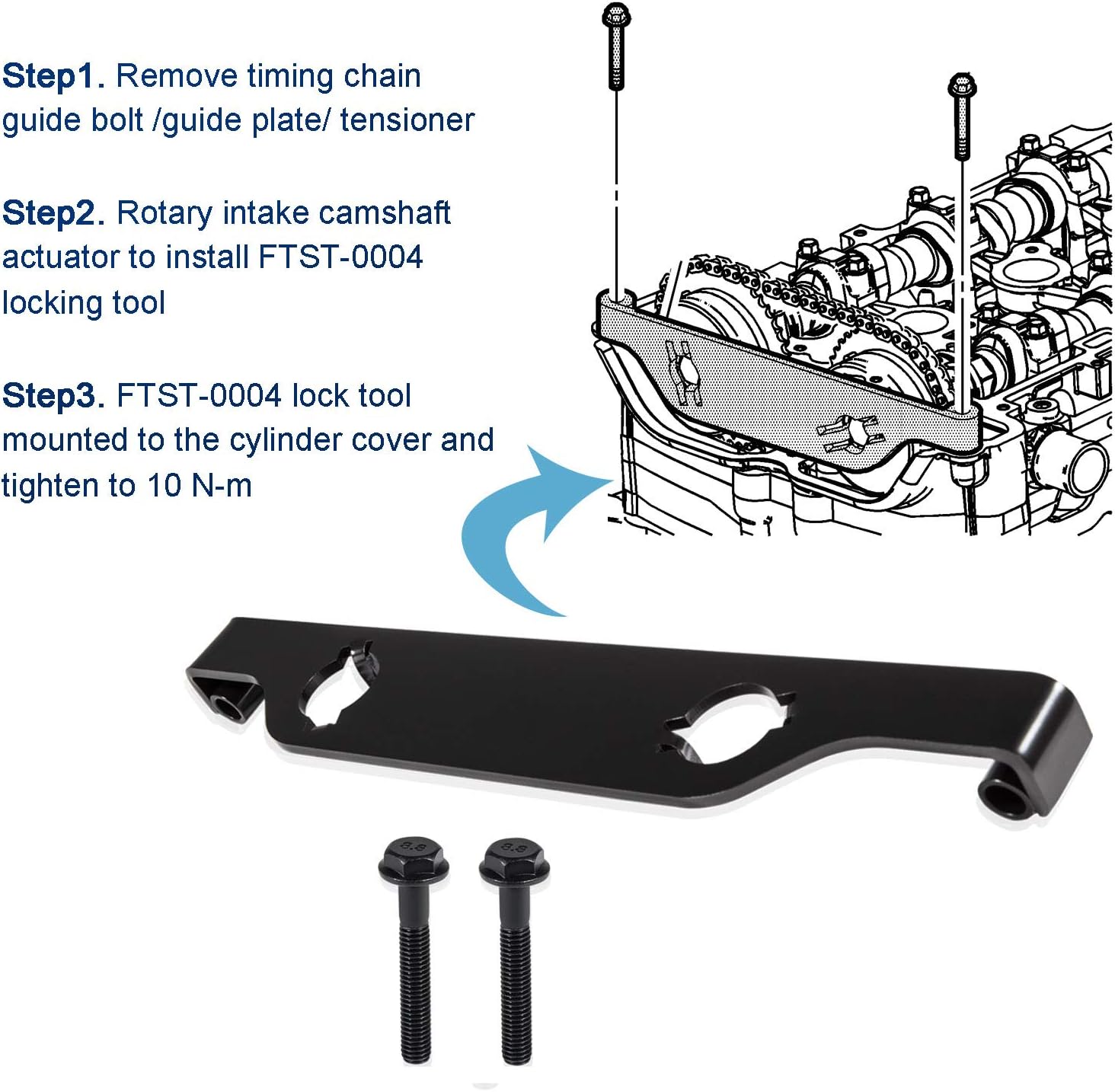

E-cowlboy EN-48953 Cam Phaser Retainer / Camshaft Actuator Locking Tool Feature: Color: black Applications: Ecotec/2010 Buick LaCrosse, 2010 Chevy Equinox, 2010 GMC Terrain, 2.0L, 2.4L ECOTEC engines Why you need this E-cowlboy EN-48953 Cam Phaser Retainer 1. The camshafts on the ECOTEC engines must be held when removing or installing the cam phaser bolts, or the timing chain may slip and not keep its relationship to the phasers. 2. Current service methods use an open end wrench to hold the cam, and can be very awkward, especially for in-vehicle service. 3. EN-48953 mounts to the front of the block and its tabs engage both cam phasers to hold them so the phaser bolts may be serviced. 4. A pass-through hole on each side allows a socket to be used to remove or install the phaser bolt. 5. Applicable to a series of models. 6. Easy to operate. Tool Use Method: 1.Remove timing chain guide bolt 2.Remove timing chain guide plate 3.Remove timing chain tensioner 4.Rotary intake camshaft actuator to install FTST-0004 locking tool 5.FTST-0004 lock tool mounted to the cylinder cover and tighten to 10 N-m. If the intake camshaft actuator independently of the camshaft and did not move the lock, the counterclockwise rotation of the intake camshaft, the locking tool fixing actuator, the actuator locking on the cam 6 . Loosen intake camshaft actuator bolt 6.Loosen exhaust camshaft actuator bolt 7.Remove FTST-0004 (Please Note: Marking chain and actuator is very important in operating procedures. Before marking the actuator and chain, the oil must be removed from the camshaft actuator and timing chain)

• APPLICATIONS: Ecotec/2010 Buick LaCrosse, 2010 Chevy Equinox, 2010 GMC Terrain, 2.0L, 2.4L ECOTEC engines.
• EASY TO OPERATE: Remove timing chain guide bolt plate tensioner/ Rotary intake camshaft actuator to install FTST-0004 locking tool.
• NICE DESIGN:This EN-48953 mounts to the front of the block and its tabs engage both cam phasers to hold them so the phaser bolts may be serviced.
• SUPERIOR MATERIOR: Made of high standard steel that coated with black oxide finish, resisting rust, corrosion and high temperature, ensures a unparalleled long term service.
