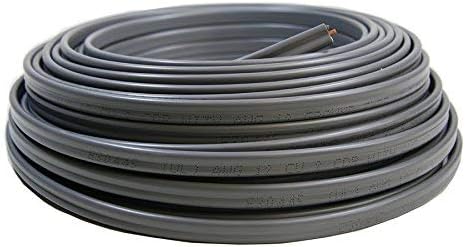

10/2 UF-B Wire, Underground Feeder and Direct Earth Burial Cable (75ft)
4.3 (62 items)
Limited Time Sale$58.30 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208223083 | Release Date | 2026/03/22 | List Price | $38.87 | Model Number | 208223083 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Applications:UF-B is an underground feeder and branch circuit wiring cable. It can be used as an underground feeder from an existing building to outdoor lighting fixtures, pumps, outbuildings and other equipment. Its applications are outlined in Article 340 NEC 2008 and NEC 2011. UF-B is rated at 600 volts. Although it is rated at a conductor temperature of 90ºC dry / wet, its ampacity is limited to 60ºC according to the NEC 2008 AND NEC 2011. UF-B may be directly buried or installed where exposed to sunlight. When used as an NM cable it must comply with the requirements in NEC 2008 and NEC 2011 Article 334.Standards:ASTM - B3 and B-8UL Standard 83UL Standard 493Federal Specification A-A-59544National Electrical Code, NFPA 70, 2011 EditionRoHS/REACHConstruction:Insulation: Polyvinyl Chloride (PVC) with a nylon covering. Color coded phase identification.Jacket:Gray PVC.Specifications:Size:10 AWGNumber of Conductors:2PVC Insulation Thickness:0.024 inchesGround Wire Size:10 AWGNylon Thickness:0.004 inchesNominal Cable Dimensions:0.518 inches x 0.215 inchesWeight per Foot: 0.178 lbsAllowable Ampacity: 33 Amps
- #10 AWG Wire with Annealed (Soft) Copper (Cu) Conductors
- Used Indoor for Wet or Corrosive Locations
- Used Outdoor for Direct Earth Burial
- Has a Heat Capacity of 90 Degrees Celcius and is Rated for 600-Volts, Has an Allowable Ampacity of 30 Amps
- Color of Wire May not be the Same as the Picture Shown.
| UPC | 680226296601 |
|---|---|
| Size | 75ft |
| Brand | Stock Wire |
| Color | Gray |
| Gauge | 10.0 |
| Voltage | 600 Volts |
| Material | Polyvinyl Chloride |
| Item Weight | 10.96 pounds |
| No of wires | 2 |
| Part Number | 28794 |
| Manufacturer | Stock Wire |
| Item model number | 28794 |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 14.49 x 14.33 x 3.7 inches |
| Item Package Quantity | 1 |
| Number of Cable Strands | 30 |
| Is Discontinued By Manufacturer | No |
