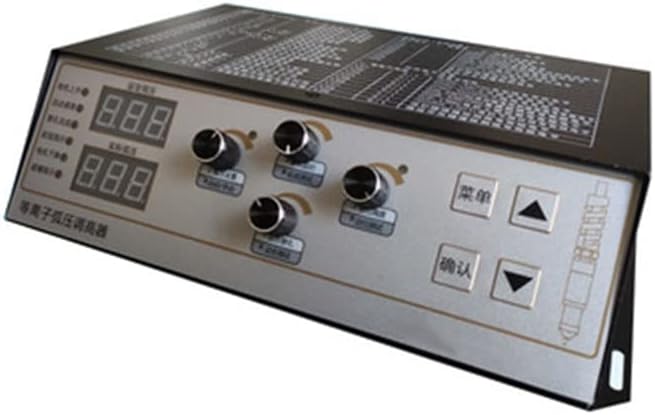

F1620 Upgrade F1621 THC automatic Arc cap voltage plasma torch height controller Plasma cutting machine cutter LED display
4.3 (90 items)
Limited Time Sale$212.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209986605 | Release Date | 2026/04/02 | List Price | $141.60 | Model Number | 209986605 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1pc F1621F1621Product parameters1. Model: F16212. Operating voltage: DC24±10%, 60W2. Lifting motor: DC24V motor, 45W4. Drive mode: PWM stepless speed regulation, H-bridge MOS drive5. Operating temperature: 0-50℃6. Positioning method: protective cap positioning or proximity switch positioning7. Arc voltage range: 0V-600V8. Sampling accuracy: 0.2V9. Control accuracy: 0.5V10. Partial pressure ratio: 100: 111. Lifting speed: 8000MM / MIN12. Sensitivity: adjustable through parameters13. Protection: overload protection14. Over temperature protection15. Short circuit protection16. Under voltage protection17. Power supply anti-reverse protectionProduct Features1. Two initial positioning methods: 1. Proximity switch positioning 2. Protective cap positioning.2. Automatic arc pressure height control: When cutting, it automatically tracks the height of the steel plate and always keeps the cutting gun at a fixed height from the steel plate to ensure the cutting quality.3. Automatic elevation to protect the cutting gun: 1、After crashing the gun, automatically elevate the gun 2、After cutting is completed, automatically elevate the gun.4. Various operation modes: 1. Automatic operation 2. Manual operation.5. Arc voltage monitoring: dual arc voltage display, convenient for users to monitor the height during cutting in real time.6. Arc pressure intelligent adjustment: after multiple collisions, automatically raise the set arc pressure.7. Dynamic perforation: The moment of perforation, raise the cutting gun. Protects the cutting gun from splash damage.Item specifics:Model number: F1621Motor type: Stepper MotorOrigin: Mainland China
- Model number: F1621
- Motor type: Stepper Motor
- Origin: Mainland China
| Brand Name | Generic |
|---|---|
| Unit Count | 1.0 Count |
| Manufacturer | DAVITU |
| Material Type | Alloy Steel |
| Number of Pieces | 1 |
| Included Components | Cutting Gun |
| Manufacturer Part Number | DVT-275FB2D5EA5E5FF3202D8C2B2F5BB081 |
Plasma Cutting Equipment
