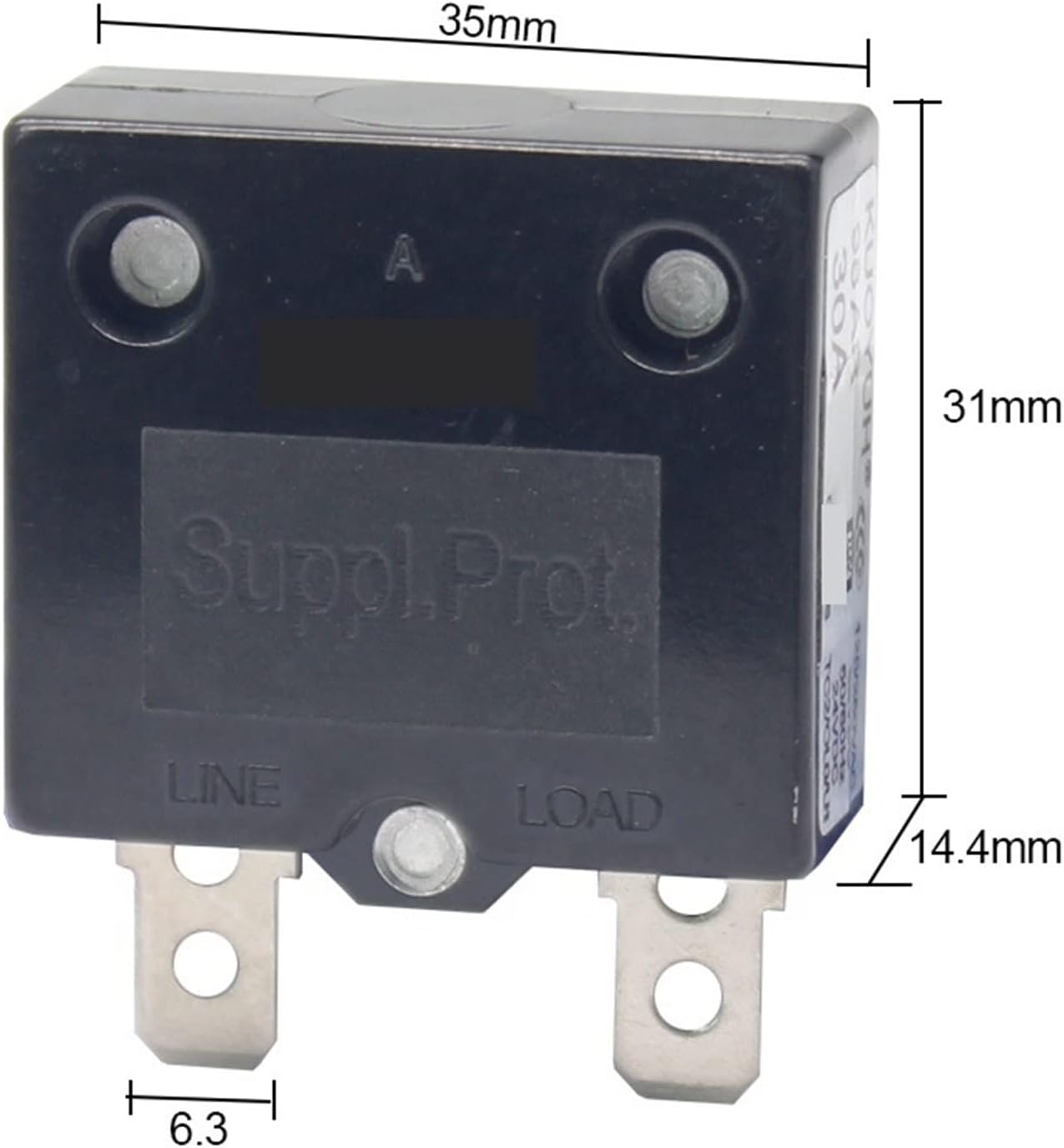

MOBYAT 98AR Series 5A 10A 15A 20A 25A 30A 40A 50AMotor Protection Thermal Switch Overload Circuit Breaker 1Pcs (Size : 50A)
4.5 (93 items)
Limited Time Sale$13.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210099021 | Release Date | 2026/04/02 | List Price | $9.19 | Model Number | 210099021 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

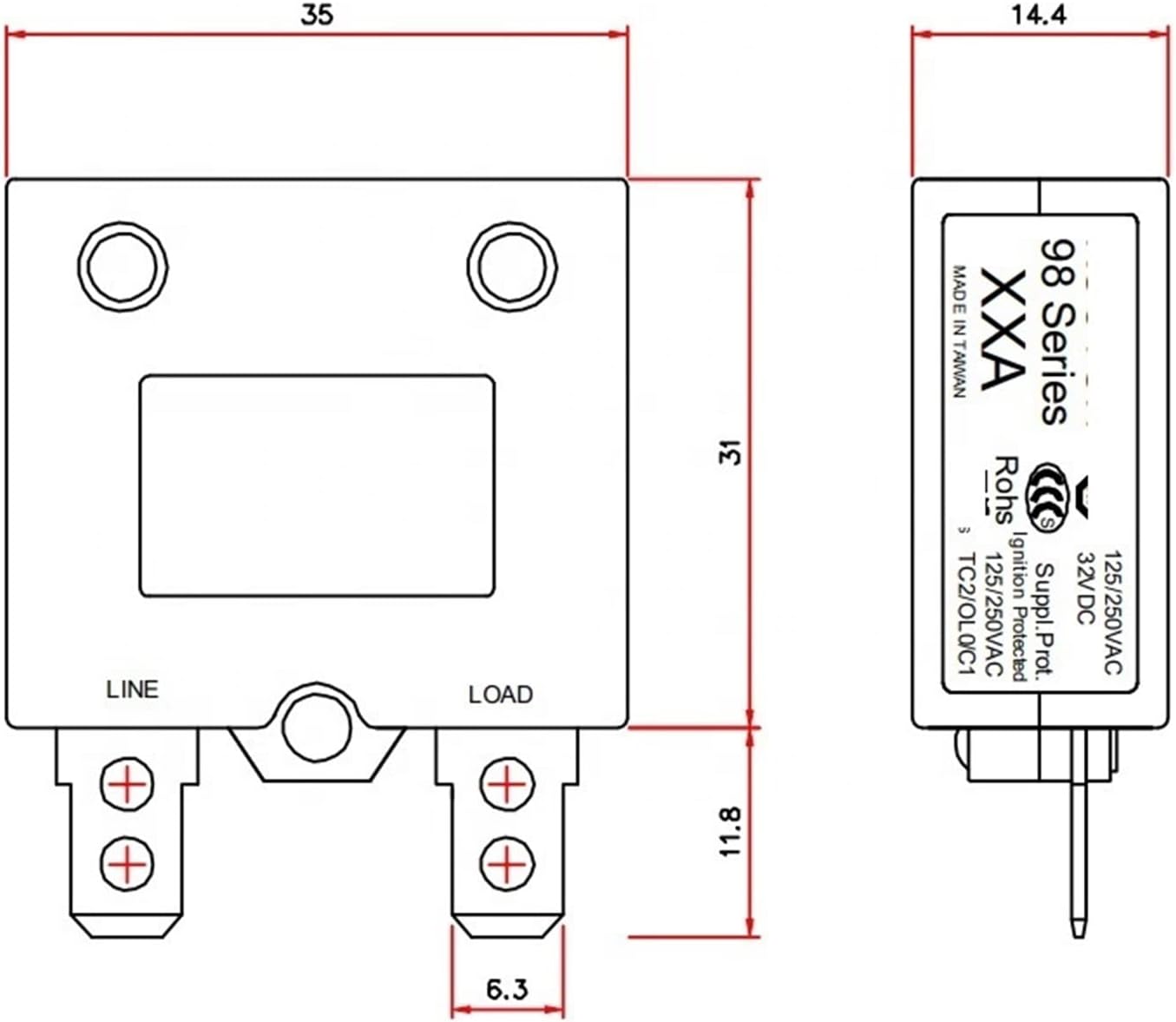

Thermal Circuit Breakers98AR Series 5A 10A 15A 20A 25A 30A 40A 50AMotor Protection Thermal Switch Overload Circuit Breaker 1PcsProduct Description98AR Thermal Circuit BreakerTechnical dataCurrent rating range3~50AInput voltage rating125/250VAC; 32VDCContact Endurance125Vac X150% of rated current >500 cycles125Vac X200% of rated current >200 cyclesInsulation Resistance>100MOHM (DC 500V)Dielectric Strength> 1,500VAC/min.Degree of protectionTerminal area IP00, operating area IP40Mechanical/Environmental DataOperating Ambient Temperature:-10+60Termination:110''(2.8mm)quick connects or solder terminalsMounting:Various options. See Ordering Information and drawingsCalibration(at25 )100% of Rated Current:Hold , No Trip150% of Rated Current:Trip Within 1 Hour.200% of Rated Current:5-30 sec Trip300% of Rated Current:1.5-5.0 sec TripRelated Products88 series98 seriesar series92 series94n series91 series
- Thermal Circuit Breakers
| Brand Name | MObyat |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 1 Grams |
| Part Number | MOBYAT |
| Manufacturer | MOBYAT |
