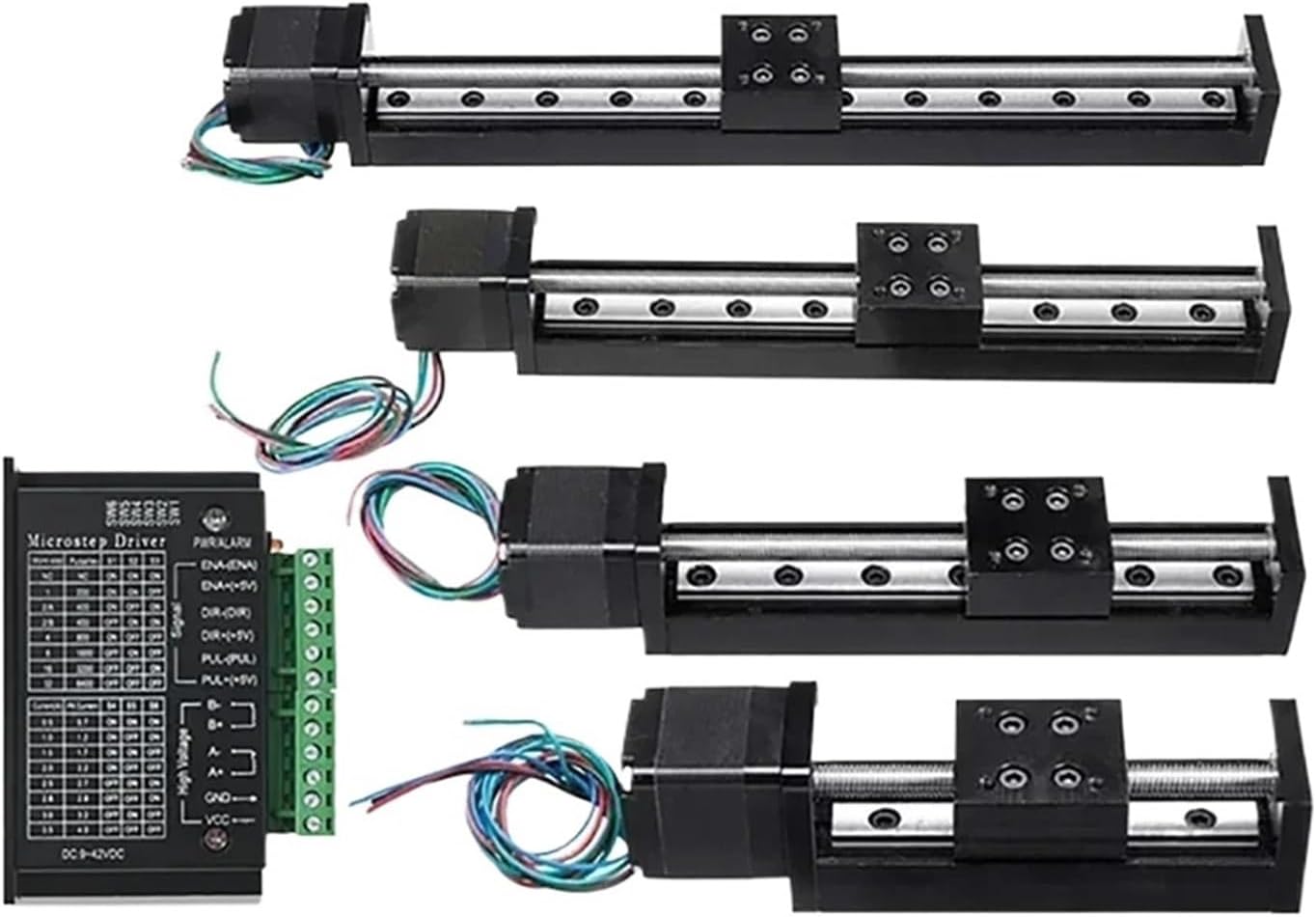

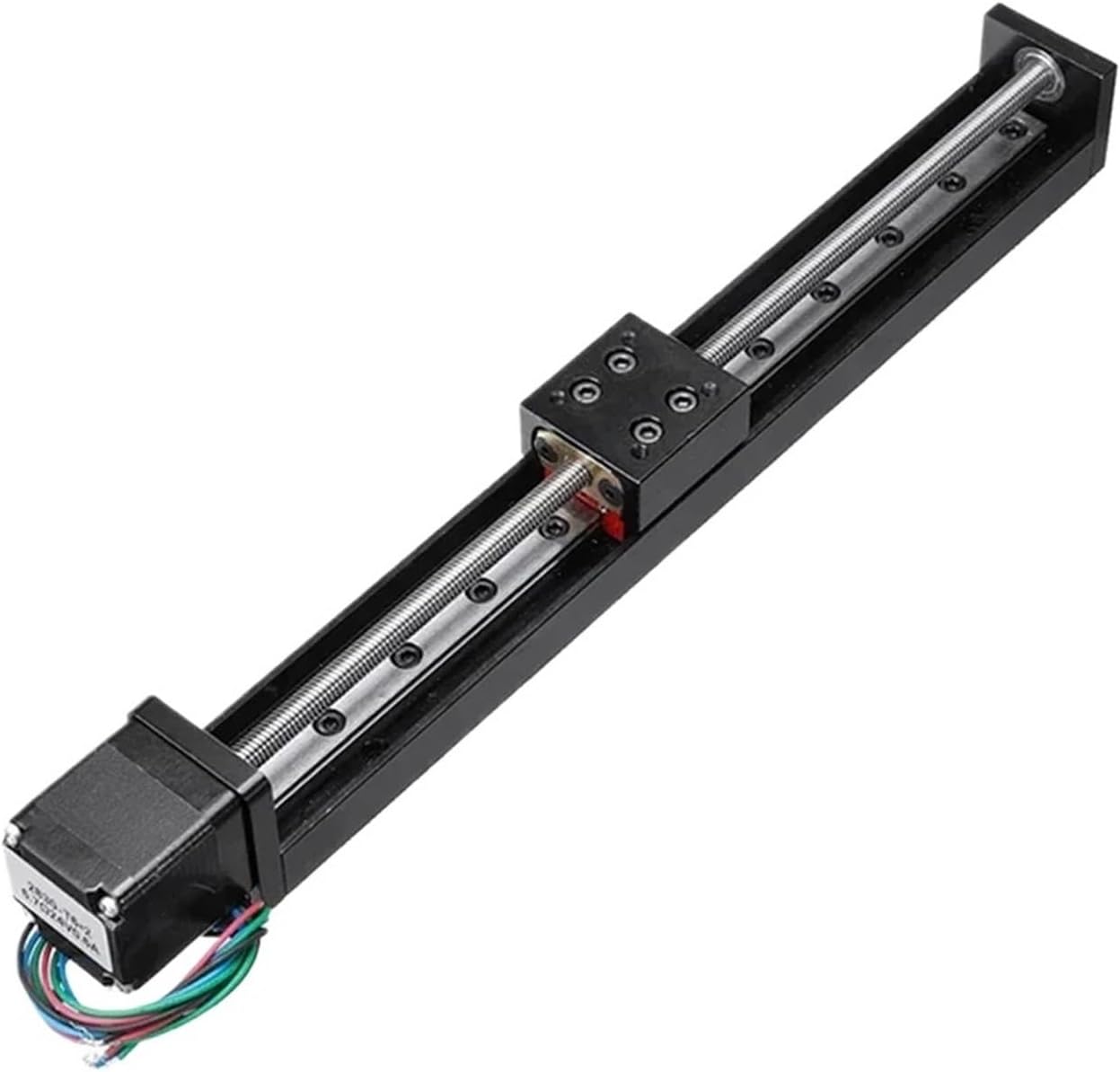

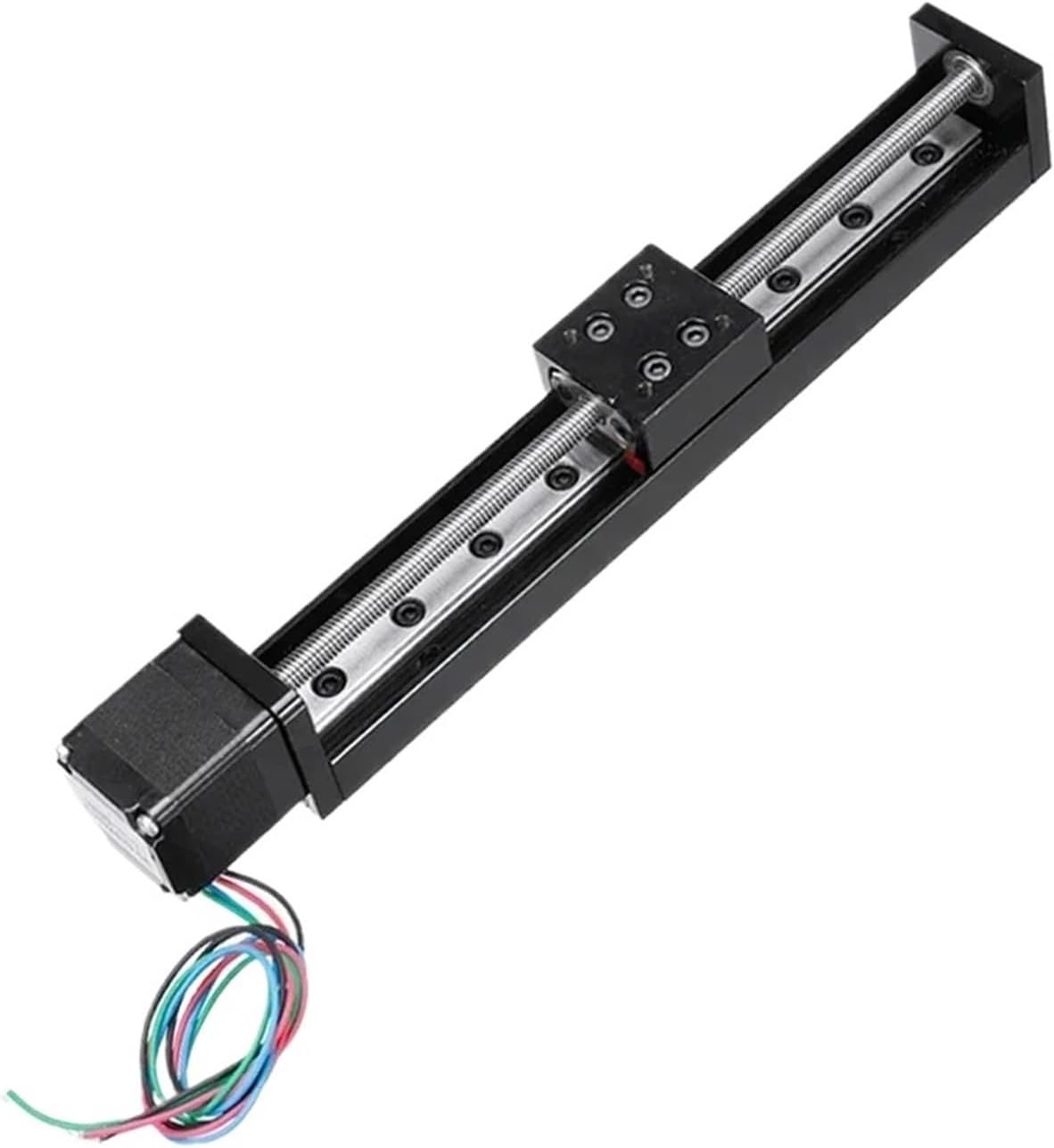

Motorized Slide Table T-Type Linear Guide Rail Stage Mini Sliding Table Motor Drive Kit Electric Linear Module Z Axis 50-300mm
4.0 (43 items)
Limited Time Sale$69.58 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210321817 | Release Date | 2026/04/02 | List Price | $46.39 | Model Number | 210321817 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
RailsEffective stroke: 50mm-300mmTotal Length: Effective Stroke+75mm Mobile panel size: 30mm*32mm Repeat positioning accuracy: 0.02mm-0.03mm Base plate material: Aluminum profile Rail material: Bearing steelMaximum speed: 80mm/sRail width: 6MMBlock: MGN8HScrew Precision: C7Model: 28HB30-401A (Support 28HB40-401A motor)Motor Flange Size: 11(28MM)Holding :0.07N.mBody length:30mm Shaft diameter: 5mmType:Hybrid MotorPhase: 2 PhaseCurrent : 0.6ACertification: CCC, ISOStep angle: 1.8degreeDriver Specifications:Model: TB6600==========Model Number : T0601Guide Width or Diameter : 6mmCertification : Horizontal load : 5KG (Max)Vertical load : 2.5KG (Max)Motor Holding : 0.07N.mEffective stroke : 50mm-300mmMobile panel size : 30mm*32mmRepeat positioning accuracy : 0.02mm-0.03mmBase plate material : Aluminum profileRail material : Bearing steelMaximum speed : 80mm/sScrew Precision : C7Current : 0.6AStep angle : 1.8degreeDrive Input voltage : DC 9-42V
- Rails
- Motorized Slide Table T-type Linear Guide Rail Stage Mini Sliding Table Motor Drive Kit Electric Linear Module Z Axis 50-300mm
| Size | 4mm Pitch |
|---|---|
| Color | 50mm Stroke |
| Brand Name | LZRAWKGTE |
| Model Name | LZRAWKGTE |
| Part Number | LZRAWKGTE |
| Manufacturer | LZRAWKGTE |
| Package Weight | 50 Grams |
| Number of Items | 1 |
| Suggested Users | unisex-adult |
| Item Package Dimensions L x W x H | 0.39 x 0.39 x 0.39 inches |
