1pc 317004430 HC683LG RS-550 Motor 18V High Speed Power Motor for BS18 Electric Cordless Impact Drill Power Tool(Model A)

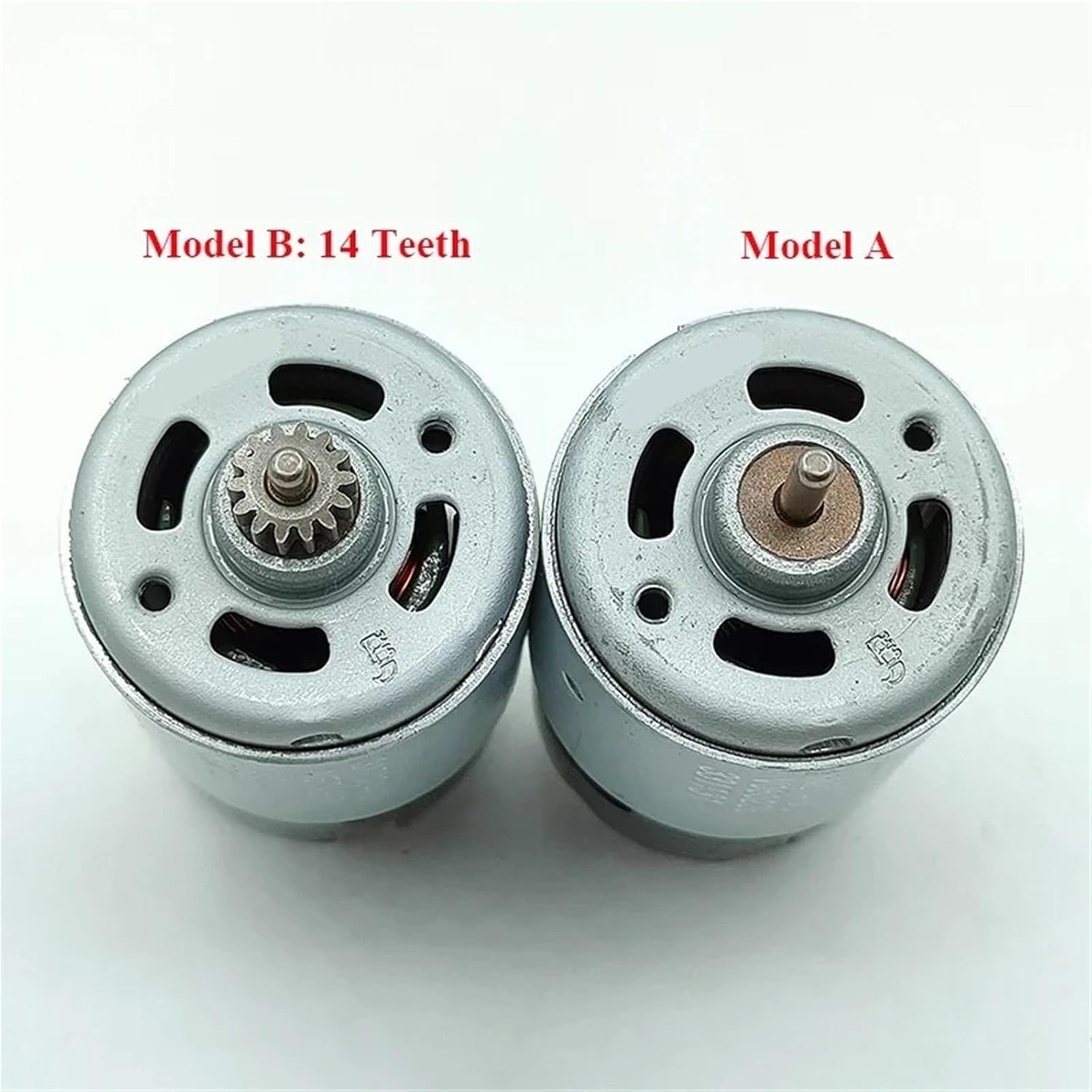

MotorsSpecification:Buying tips: There are two model motors, model A motor is no gear, model B motor is with 14 teeth metal gear on the shaft, please buyers select the suitable model you need. Thanks.2.Model number: 3170044303.Motor diameter: 36mm (with cover 38mm)4.Motor height: 57mm5.Output shaft diameter: 3.17mm ; Shaft length: 9mm (not include step height)6.Step diameter: 12.94mm ; Step height: 4.5mm7.Weight: 236g8.Suitable voltage: 5.0V-18.0V9.Test data:Voltage:5.0V No-load speed:6300RPM No-load current:0.9AVoltage:12.0V No-load speed:15000RPM No-load current:1.2AVoltage:14.4V No-load speed:18500RPM No-load current:1.3AVoltage:18.0V No-load speed:23000RPM No-load current:1.5A10.Gear teeth: 14 Teeth11.Gear dimenion: 9.6mm diameter; 4mm thickness=========================Package List:Motor x 1PC=========================Model A Motor: no gear=========================Model B Motor: with 14 teeth metal gear on shaft==========Hign-concerned Chemical : NoneModel Number : Mini RS-550 MotorConstruction : Permanent MagnetProtect Feature : Explosion-proofType : Micro MotorCommutation : BrushEfficiency : IE 1Use : Home ApplianceModel number : 317004430Motor diameter : 36mm (with cover 38mm)Motor height : 57mmOutput shaft diameter : 3.17mmWeight : 236g
