1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm)
1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm) 1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm) 1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm) 1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm) 1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm)

1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm)

flash sale iconLimited Time Sale
Until the end
16
43
36

$211.02 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $351.70
quantity

Product details

Management number 211319210 Release Date 2026/04/04 List Price $140.68 Model Number 211319210
Category
  1. Industrial & Scientific
  2. Power Transmission Products
  3. Gearboxes, Gearheads & Speed Reducers

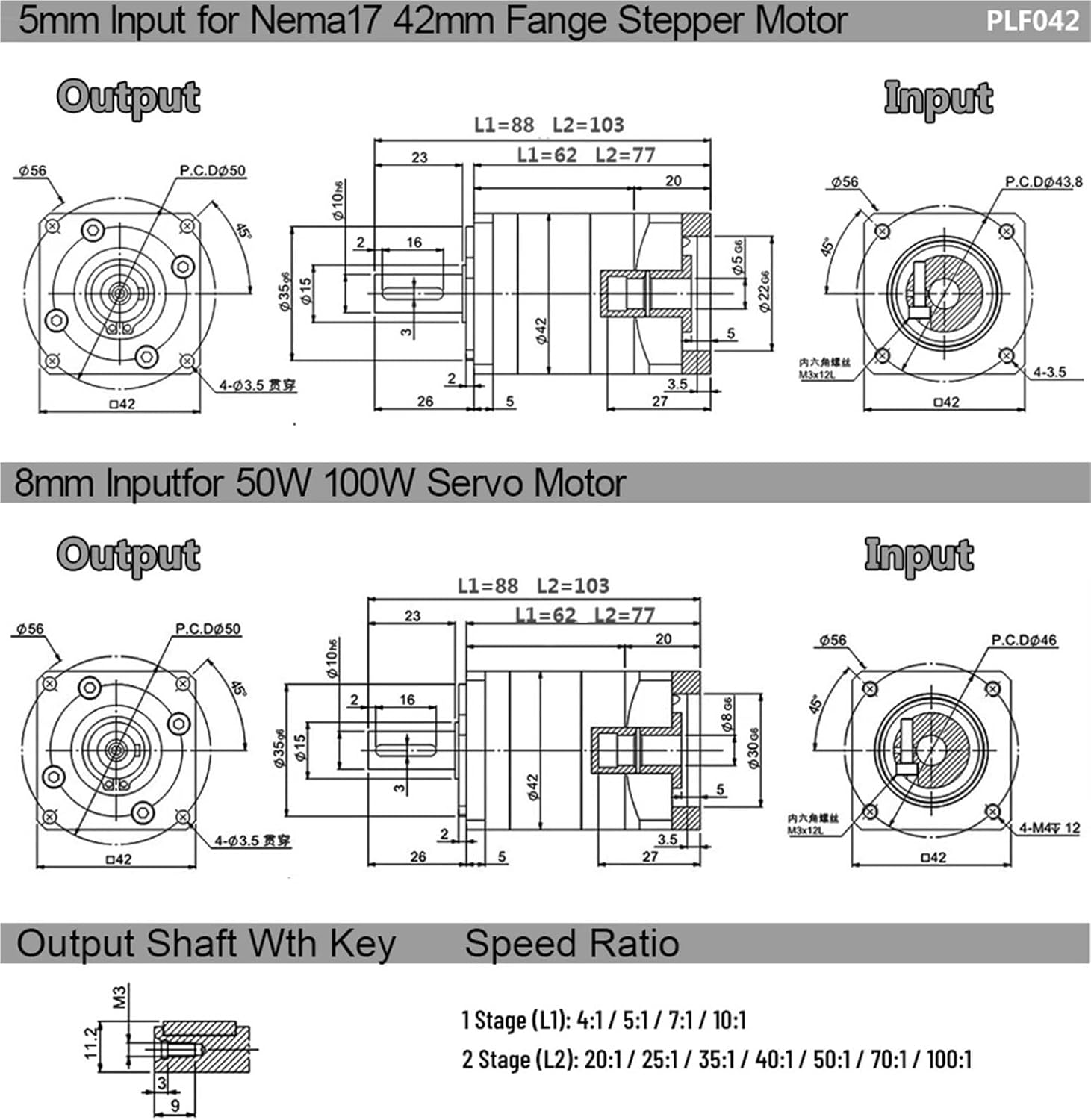

Gearboxes, Gearheads & Speed Reducers1x Planetary Gearbox 4x Install screws Speed Ratio: 1Stage (L1): 3:1 / 4:1 / 5:1 / 7:1 / 10:1 2Stage (L2): 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1 Product type: Planetary GearboxInput Shaft: 5mm / 8mm (Please choose according to your needs)Output Shaft: 10mm Rated Tq10Nm (10:1 / 100:1) 12Nm (7:1 / 35:1/70:1)16Nm (4:1 / 25:1/40:1)15Nm (5:1 /20:1/ 50:1)Maximum Tq: 1.5* Rated TqEmergency braking Tq: 2.5* Rated TqBody length: L1=80mm, L2=97.5mmBacklash Precision: L1 7 Arcmin , L2 12 Arcmin Max radial force: 185NMax axial force : 150NTorsion rigidity: 0.7Nm/arcminMax input speed: 8000rpmRated input speed: 4000rpm Noise: less than 58dB PLF042PLF060 PLF080 PLF090 PLF120 PLF160Max. Output TqNm1.5 Times Rated Output TqInstant Braking TqNm2 Times Rated Output TqMax Radial TqN 18524040045012402250Max Axis TqN 15022042043010001500Torsional StiffnessNm/arcmin0.71.84.74.851156Max Input Speedrpm800080006000600060004000Rated Input Speedrpm440040003500350035003000NoisedB555860606570Life timeh 20000Full Load Efficiency% L196%, L294%BacklashPOL1arcmin888888L2arcmin121212121212Moment of InertiaL14:1Kg.cm20.100.460.771.7312.7836.725:1Kg.cm20.100.460.771.7312.7836.727:1Kg.cm20.060.410.651.4211.3834.0210:1Kg.cm20.060.410.651.4211.3834.02L220:1Kg.cm20.080.440.721.4912.1834.2425:1Kg.cm20.080.440.721.4912.1834.2435:1Kg.cm20.080.440.721.4912.1834.2440:1Kg.cm20.080.440.721.4912.1834.2450:1Kg.cm20.080.440.721.4912.1834.2470:1Kg.cm20.050.340.581.2511.4834.02100:1Kg.cm20.050.340.581.2511.4834.02ParameterStageRatioPLF042PLF060 PLF080 PLF090 PLF120 PLF160Rated Output Tq (Nm)L14:11640901222104235:11540901222104237:11234489517035810:11016225686210L220:115409012221042325:116409012221042335:112409012221042340:116409012221042350:115409012221042370:112344895170358100:11016225686210IP DegreeIP65Operating Temp-1090

  • Gearboxes, Gearheads & Speed Reducers
  • 1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 For Nema17 Stepping Motor Or 40Servo Motor
Model VKvmNYlxx
Brand Name VKvmNYlxx
Model Name VKvmNYlxx
Manufacturer VKvmNYlxx

1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm)

1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm)

1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm)

1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm)

1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm)

1pcs Nema 17 Planetary Gearbox 50w 100w Servo Motor Gear Head Speed Reducer Ratio 4-100:1 for Nema17 Stepping Motor Or 40Servo Motor(Ratio 20,Input 5mm Out 10mm)
