KomShine FX39 Six Motors Optical Fiber Fusion Splicer 6s Splice 16s Heat, FTTx Touch Screen 4.3 Inch OTDR SM 1310nm 26dB 1550nm 24dB Built in OPM, OLS, RJ45, Link Map, FC/SC Connectors
4.1 (124 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211720945 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211720945 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

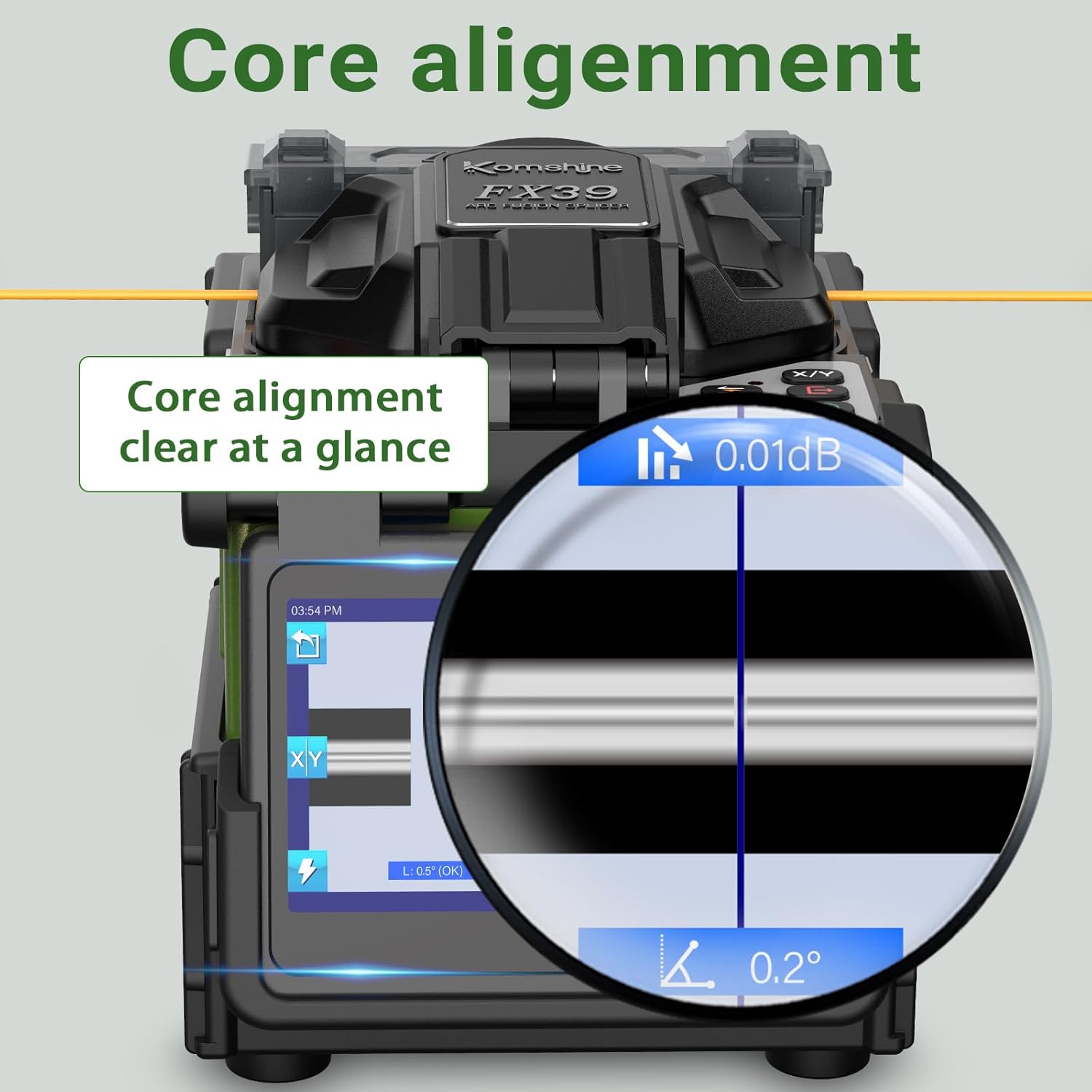

- Fusion Splicer Komshine FX39 Fiber Optical Fusion Splicer With 6s Fast Splicing, Core Alignment Fiber Splicer With 7800mAh Large Battery Capacity, Automatic Fusion Splicer Plus 5000 Electrodes Life
- 3 IN 1 FIBER HOLDER- SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable. Applicable Fibers:SM(G.652&G.657);MM(G.651);DS(G.657); NZDS(G.655)
- 6S fast splicing, 16S fast heating ; 4.3 inch LCD color display； Komshine FX39 Trunck Fusion Splicer Suit for Multi FTTH projects

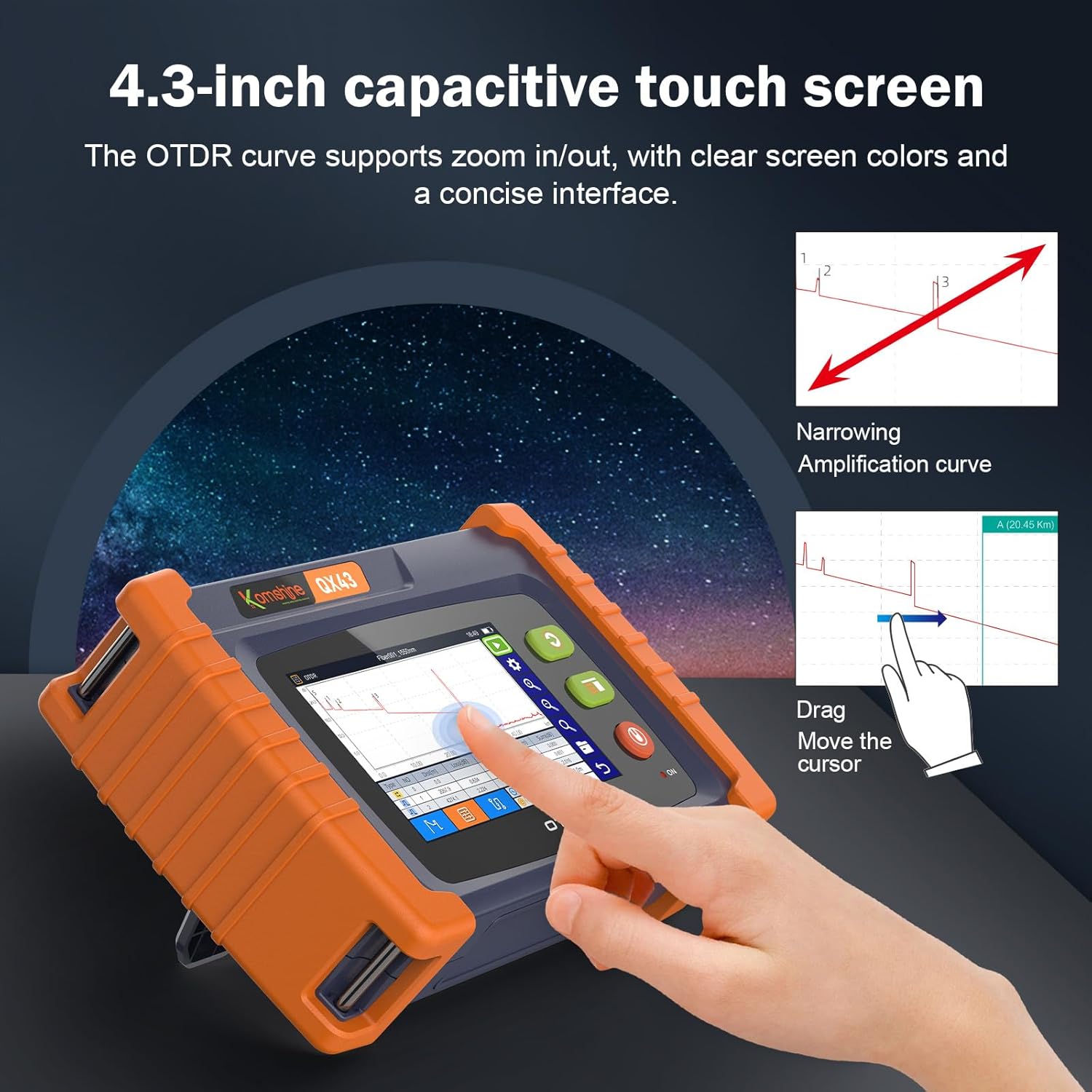

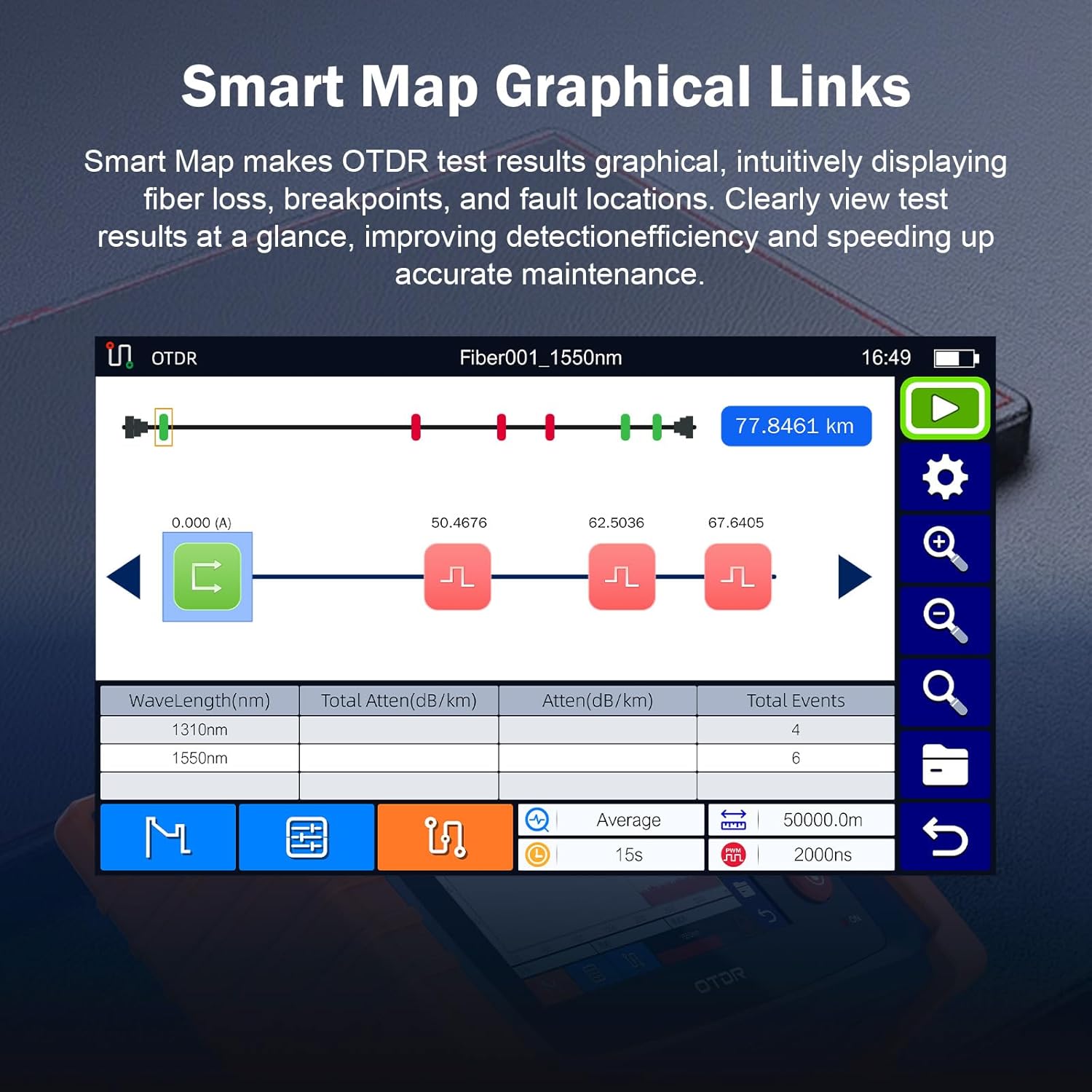

- Komshine QX43 OTDR Touch Screen 4.3 inch SM 1310/1550nm 26/24dB Built in OPM, OLS, VFL, Link Map, RJ45
- OPM&OLS: Power meter KPM-35 with 800-1700nm wavelength; Light source KLS-35-S typical output ≥ -5dB, 1310/1550nm wavelength; Both OPM&OLS with 2.5mm universal connector, equipt with LED lightning to work in dark environment
- Pen type cleaner FOC-125 for 1.25mm LC/MU (APC&UPC), FOC-250 to 2.5mm SC/ST/FC (APC&UPC), Clean＞800 times; Cassette type cleaner TCC-600 is suitable for FC/SC/LC/ST/MU/D4/DIN UPC/APC, 500+times of cleaning
- MEASUREMENT DISTANCE: The OTDR optical time domain reflectometer can measure continuous events of 8x3 meter optical fiber patch cords in fully automatic mode. Short distance testing: Accurately test optical fiber events and losses
- CONTINUOUS OBSERVATION: The real time mode of OTDR optical fiber tester enables continuous observation of optical fibers, allowing for immediate detection of any changes or faults. This is particularly useful for maintenance and troubleshooting
| UPC | 607608480984 |
|---|---|
| Color | Blue |
| Model | FX39 Splicer + QX43 OTDR |
| Brand Name | KOMSHINE |
| Style Name | FX39+QX43-S1 |
| Manufacturer | KOMSHINE |
| Power Source | Battery Powered |
| Included Components | fiber power meter, fiber stripper, VFL |
