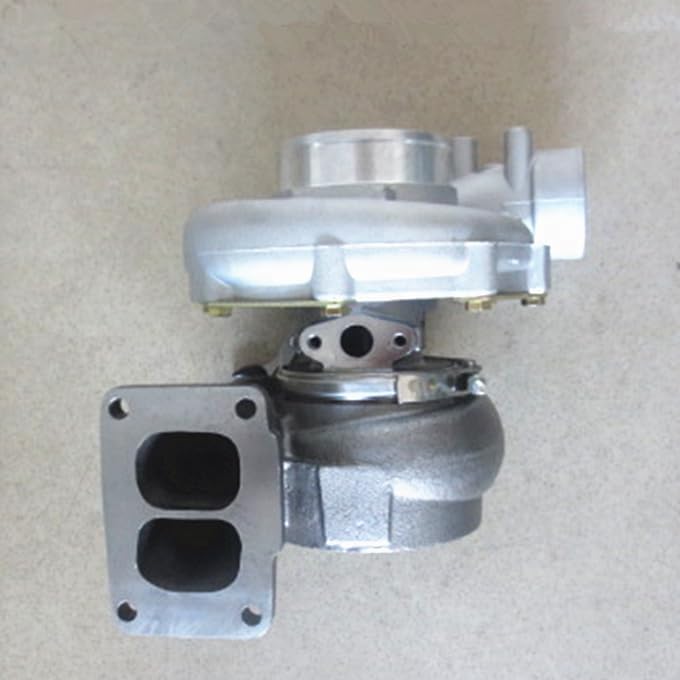

New 452229-5001S 452229-0001 1319282 1642323 Turbo GT4294 1997- For DAF Truck F95 (XF315M Engine)
4.1 (24 items)
Limited Time Sale$286.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212468630 | Release Date | 2026/04/06 | List Price | $191.19 | Model Number | 212468630 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Part Number 452229-5001S Previous Version 452229-0001 OE number 1319282 1642323 Description Truck CHRA 436103-0002 (436103-5002S)(1000010419) Turbo Model GT4294 Engine XF315M Engine Manufacturer For DAF Displacement 12.6L 12580 ccm 6 Cylinders KW 173 Fuel Diesel Angle α (compressor housing) 170º Angle β (turbine housing) 115º Bearing Housing 410310-0004 (410310-0001)(1900011222) Turbine Wheel 434281-0020 (Ind. 72.5 mm Exd. 82. mm 10 Blades)(1100016359) Comp. Wheel 434354-0004 (434335-0004)(Ind. 69.1 mm Exd. 94.1 mm Trm 54 6+6 Blades)(1200016310) Back plate 448890-0008 (1300016086) Heat shield Number 410366-0007 (410366-0003 410366-0004)(2030016004) Repair Kit 709153-0001 (709153-0002 709153-0005)(1102042750 5000010190) (13***75) Turbine Housing 436287-0006 Compressor Cover 436434-0001 Turbine Housing AR 1.44 Gasket (turbine inlet) 132040 (9749 1S4295 202873 205396 3500683 210017-0000 409038-0000)(1900000003)(417382 Replaced by 470939 20784537) Gasket (turbine outlet) 210222 (Stainless Steel) Gasket oil inlet 129119 (210019 201049 9737 1S6595 210019-0000 409266-0003 3819900 129120)(417378 Replaced by 420641)(1900000035) Gasket (oil outlet) 210060 (311585 148062 2475013) (Paper) Applications 1997- For DAF Truck F95 with XF315M Engine
- Part Number 452229-5001S Previous Version 452229-0001 OE number 1319282 1642323 Description Truck CHRA 436103-0002 (436103-5002S)(1000010419) Turbo Model GT4294 Engine XF315M Engine Manufacturer For DAF Displacement 12.6L 12580 ccm 6 Cylinders KW 173 Fuel Diesel Angle α (compressor housing) 170º Angle β (turbine housing) 115º
- Bearing Housing 410310-0004 (410310-0001)(1900011222) Turbine Wheel 434281-0020 (Ind. 72.5 mm Exd. 82. mm 10 Blades)(1100016359) Comp. Wheel 434354-0004 (434335-0004)(Ind. 69.1 mm Exd. 94.1 mm Trm 54 6+6 Blades)(1200016310) Back plate 448890-0008 (1300016086) Heat shield Number 410366-0007 (410366-0003 410366-0004)(2030016004) Repair Kit 709153-0001 (709153-0002 709153-0005)(1102042750 5000010190) (13***75) Turbine Housing 436287-0006 Compressor Cover 436434-0001
- Turbine Housing AR 1.44 Gasket (turbine inlet) 132040 (9749 1S4295 202873 205396 3500683 210017-0000 409038-0000)(1900000003)(417382 Replaced by 470939 20784537) Gasket (turbine outlet) 210222 (Stainless Steel) Gasket oil inlet 129119 (210019 201049 9737 1S6595 210019-0000 409266-0003 3819900 129120)(417378 Replaced by 420641)(1900000035) Gasket (oil outlet) 210060 (311585 148062 2475013) (Paper)
- Applications 1997- For DAF Truck F95 with XF315M Engine
| Brand | Generic |
|---|---|
| Model | Turbochargers |
| Exterior | Machined |
| Item Weight | 22 pounds |
| Manufacturer | Group Wan |
| Item model number | Turbochargers |
| Product Dimensions | 11.81 x 11.81 x 11.81 inches |
| Manufacturer Part Number | turbo2128 |
