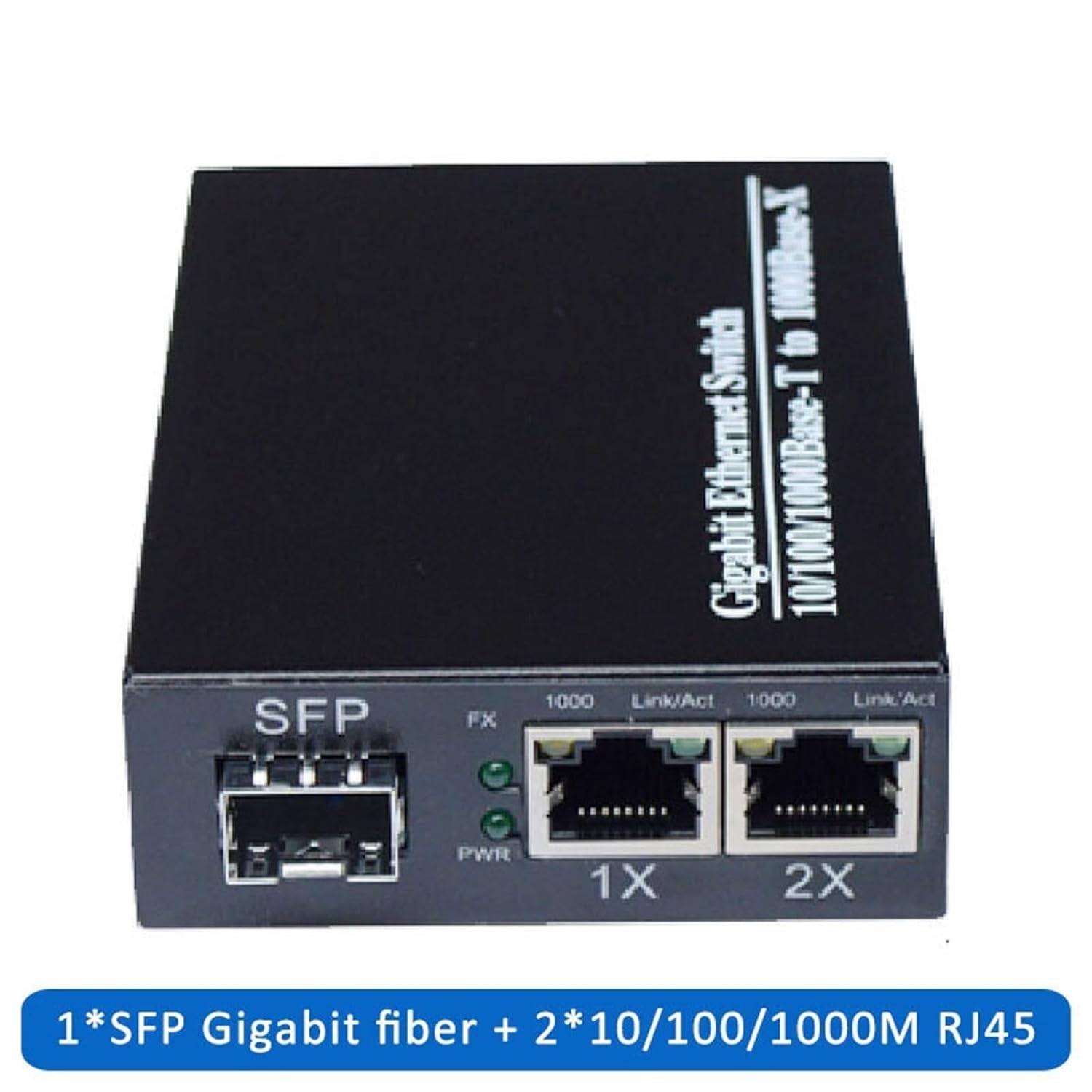

Gigabit Media Converter 1 Port sfp to 2 rj45 Optical Fiber GPOn/Epon OLT ethernet for IP Camera 10/100/1000M(No sfp EU Power)

Digital to Analog ConvertersSFP Fiber to RJ45 converter gigabit SFP media converter 1000Mbps SFP Gigabit Fiber Optical Converter Board10/100/1000 Mbps SFP Slot Ethernet Media ConverterOverview This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers'requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.Key Features * Modular design, and play* Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards* Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex* Available in single fiber WDM versions - 1310/1550 nm wavelengths used* Supports automatic cross of twisted pair ports* Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's statusSpecifications:StandardsIEEE802.3 10Base-TIEEE802.3u 100Base-TX/FXIEEE802.3z 1000Base-SX/LXIEEE802.3x Flow controlIEEE802.1p QoSIEEE802.1d Spanning TreeEthernet PortConnector: RJ45Data Rate:10/100M or10/100/1000MDistance: 100mUTP Type: UTP-5E or higher levelFiber PortConnector: SC/FC/ST/SFP slotData Rate: 155M or 1.25GbpsOptical Wavelength: 850nm/1310nm/1490nm/1550nmDistance: 550m-120kmPerformanceProcessing Type: Store and Forward Table Size:4K/6K/8KBuffer Space: 500kbs/1Mbit/2MbitJumbo Packet: 1518 bytesBack bandwidth: 3.8G/5.6G/7.2G<;150sPowerPower type: external power supplyInput Voltage: AC100V-240V 50/60HzConnector: DC SocketWorking Voltage: 5VPower Consumption: 2.2W-3.5WTransmissin DistanceTwisted Pair: 100m (CAT5e, CAT6 cables)Muti-mode: 2kmSingle-mode: 3/20/40/60/80/100kmMTBF100, 000 hoursEnvironmentStorage Temperature: -40-70Operating Temperature: -10-55Relative Humidity: 5-90% ( no condensation)Mechanical StructuresDimension: 215×107×26mmWeight: 0.15PCB main board==========Wireless function : NoHigh-concerned chemical : NoneFiber Type : Single ModeConnector Type : SC/UPCItem Length : 1mModel Number : SFP-0102-1
