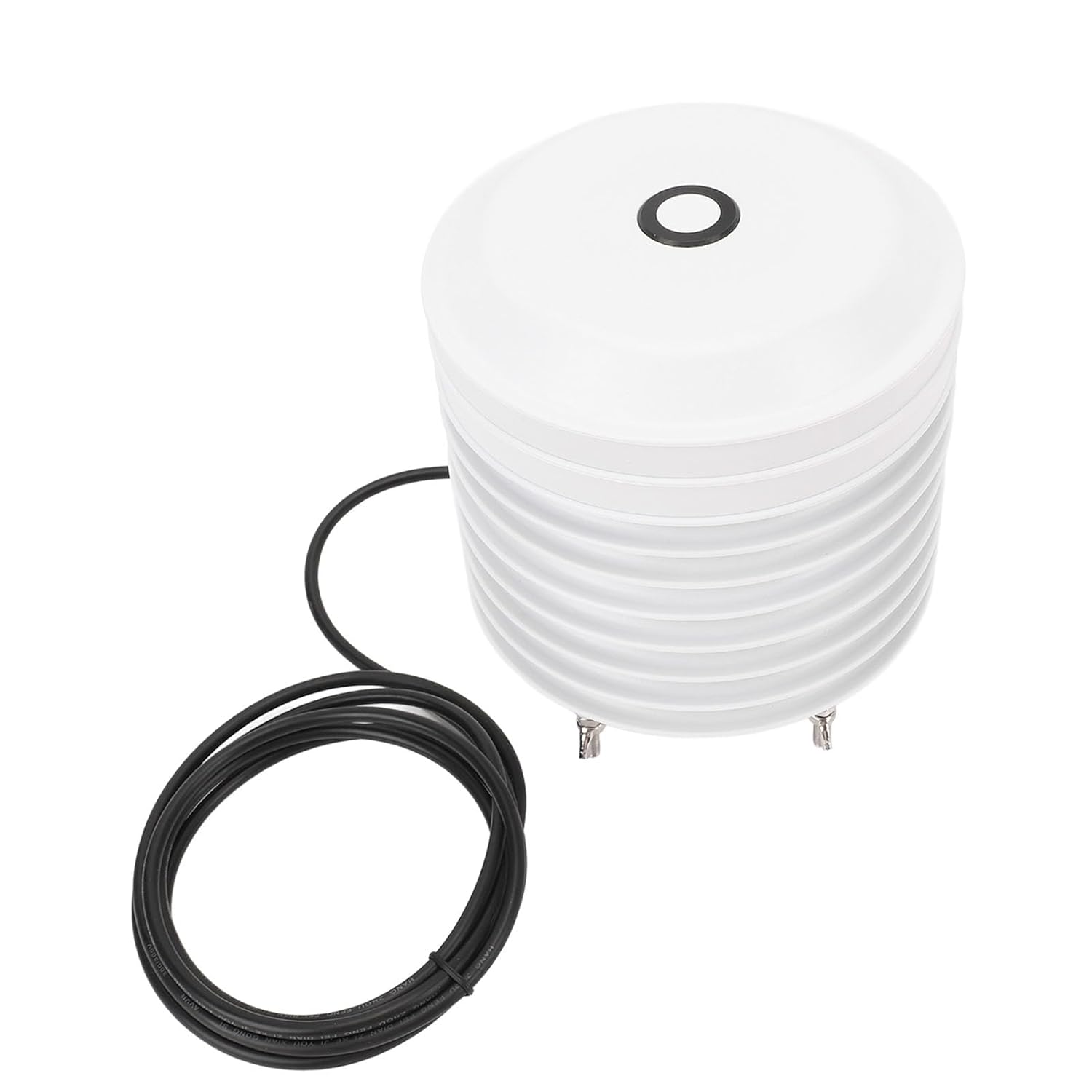

Weather Sensor Louver Box Type, Air Temperature Humidity CO2 Light Intensity Sensor RS485 Output 9-30V - Integrated Design, Accurate Environmental Monitoring for Meteorological

Item Type: Weather SensorProduct Material: ABSFunctions: Atmospheric Temperature, Atmospheric Humidity, Light Intensity, CO2Power Supply Mode: 9-30VOutput Form: RS485Product Size with Bending Plate: Approx. 262 x 215mm / 10.3 x 8.5inLouver Box Size: Approx. 140 x 127mm / 5.5 x 5inWeight: Approx.1266g/44.66ozMeasurement Type Range Accuracy Resolution Power Consumption Luminous Flux 0-200000Lx (Outdoor) ±4% 1Lx 0.1mW 0-65535Lx (Indoor) 0.1mW CO2 0-5000ppm ±(50ppm+5%) 1ppm 100mW Atmospheric Temperature -40-100℃ (Digital Signal Output) ±0.3℃(Standard) 0.1℃ 1mW Atmospheric Humidity 0-100 %RH ±5%RH (Standard) 0.1%RH Sensor Total Power Consumption: Multi Factor Power Consumption + Mainboard Basic Power ConsumptionWorking Environment: -40℃-75℃Main Board Basic Power Consumption: 200mwProtective Level: IP54Wire Color and Wiring Sequence (RS485 Signal)Red Wire: VCC Power Supply Positive PoleGreen Wire: GND Power Supply Negative Pole Black Wire: 485-AYellow Wire: 485-BChecking Steps:1. The preset 16 bit register is hexadecimal FFFF, is called CRC register;2. The first 8 bit data is different from the lower part of the CRC register or put the result in the CRC register;3. Move the contents of the register to the right one bit (towards the low), fill the highest bit with 0, and check the lowest bit;4. If the lowest position is 0: repeat step 3 (shift again) If the lowest position is 1: the CRC register is XOR with polynomial A001 (1010 0000 0000 0001);5. Repeat steps 3 and 4 until you move to the right 8 times, so that the entire 8 bit data has been processed;6. Repeat Step 2 to Step 5 to process the next 8 bit data.7. The resulting CRC register is the CRC code (the resulting CRC code is low before high after).Installation Site Requirements:1. Good air circulation around2. Keep away from

• [Integrated Design]: Combines air temperature, atmospheric humidity, light intensity, and CO2 sensing in one compact louver box sensor, simplifying installation and saving space.
• [Simple Wiring]: Features an all-in-one design with a single signal cable for easy setup and maintenance, for both indoor and outdoor environmental applications.
• [Durable Material]: Constructed with - plastic offering excellent , high reflectivity, and low thermal conductivity to maintain long-term accuracy.
• [Efficient and Accurate]: Provides real-time monitoring of multiple environmental parameters, ensuring reliable data for weather stations and air quality assessments.
• [RS485 Output]: Supports seamless integration into data acquisition systems with stable RS485 communication, enhancing versatility across diverse monitoring projects.
