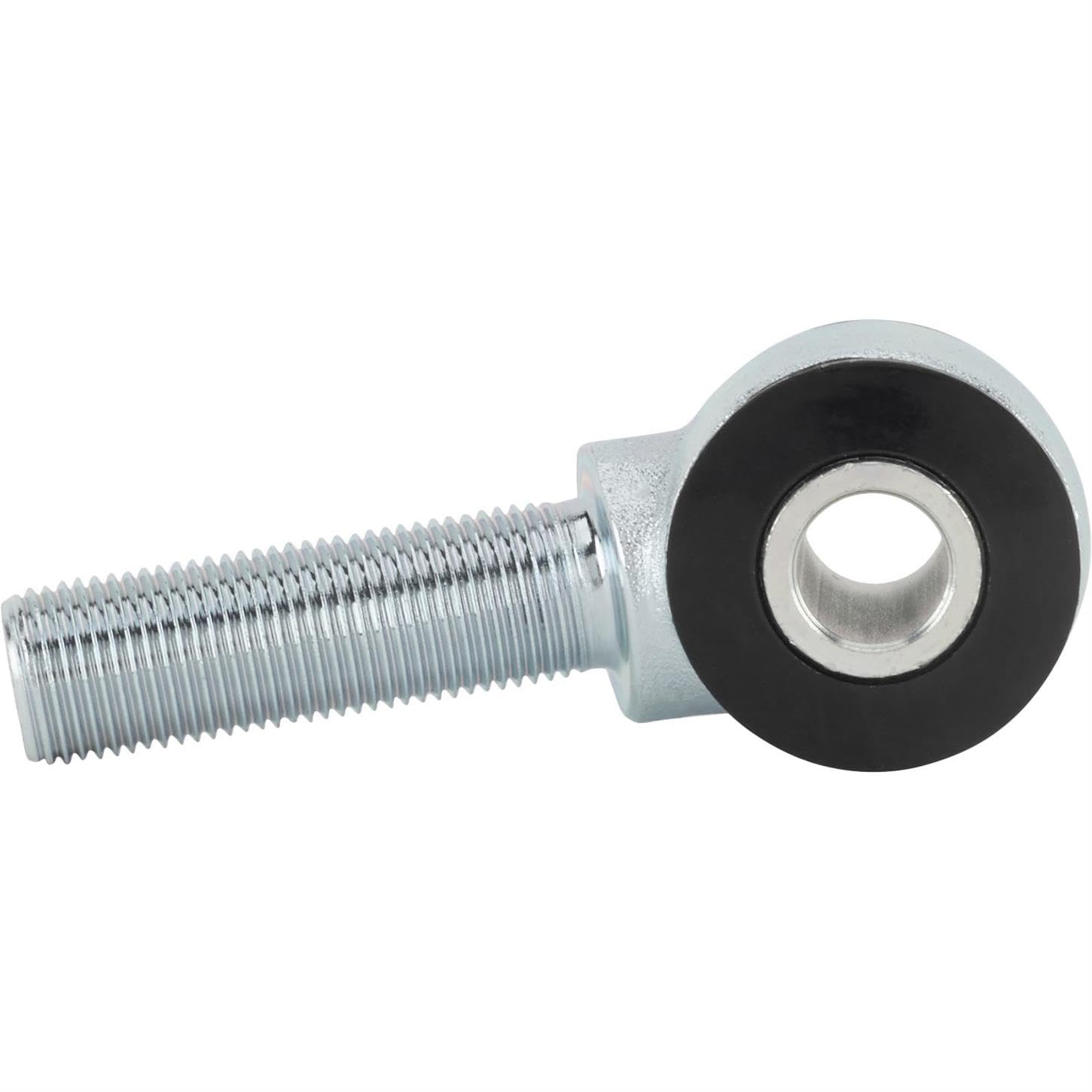

Forged Steel 4-Bar Rod End, 5/8-18 RH Thread, Straight Shank
4.4 (112 items)
Limited Time Sale$18.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 228801621 | Release Date | 2026/05/31 | List Price | $12.00 | Model Number | 228801621 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Don't settle for a weak 4-bar end made out of a piece of tubing welded to a bolt. These Speedway rod ends are made from forged steel for superior strength and durability. All rod ends feature a 5/8"-18 RH threaded shank and the polyurethane bushing has a steel sleeve that accepts a 1/2" bolt. Rod ends come in three different configurations: Choose from straight, 7° or 11° angled shanks. Straight Shank Mounting eye is perpendicular to threaded shank 5/8"-18 RH threads Center of mounting eye to end of threads is 2-7/8" 7° Shank Mounting eye is offset 7° from perpendicular to threaded shank (with the bushing side down, the stud will be angled up at a 7° angle) 5/8"-18 RH threads Center of mounting eye to end of threads on short side is 2-13/16" Center of mounting eye to end of threads on long side is 2-15/16" 11° Shank Mounting eye is offset 11° from perpendicular to threaded shank (with the bushing side down, the stud will be angled up at a 11° angle) 5/8"-18 RH threads.
- These one piece forged steel 4 bar ends add strength and safety that cast or welded ends cannot provide
- 5/8"-18 RH threaded shank allows for length adjustment of your bar assemblies
- Polyurethane bushing with 1/2" ID steel sleeve stiffens the suspension link while also absorbing road vibrations for a smooth and comfortable ride
- Zinc plating on rod end body and sleeve resists corrosion
- Available in straight, 7 degree, or 10 degree shank which make these perfect for fabricating 4 bar suspensions
| ASIN | B075NQN752 |
|---|---|
| Brand | Speedway Motors |
| Color | Natural |
| Model | 91008001-STR |
| Size Name | 1-Pack |
| Unit Count | 1 Count |
| Item Weight | 1 Pounds |
| Part Number | 91008001-STR |
| Thread Size | 5/8-18 |
| Thread Type | Rh Male |
| Finish Types | Glossy |
| Manufacturer | Speedway Motors |
| Thread Style | Right Hand |
| Fastener Type | Standard |
| Item Diameter | 0.5 Inches |
| Item Hardness | B80 (Rockwell B) |
| Material Type | Alloy Steel |
| Condition Type | Grade B7 |
| Exterior Finish | Plated |
| Item Dimensions | 5 x 2 x 1 inches |
| Number Of Items | 1 |
| Thread Coverage | Fully Threaded |
| Screw Head Style | Flat |
| Hardware Material | Alloy Steel |
| Included Components | Includes product as described |
| Warranty Description | See Return Policy |
| Set Screw Thread Type | Metric Coarse |
| Compatible Groove Diameter | 0.63 Inches |
