Handheld Digital Oscilloscope 2CH 15MHz 100MSa/s Signal Generator 2CH 1MHz 10MSa/s

<p>This is a logic analyzer product with high cost performance. </p><p>Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.</p><p>The signal could be analyzed with many standard protocols, to get more straightforward communication data.</p><p>It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.</p><p>Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability</p>

• Descriptions:

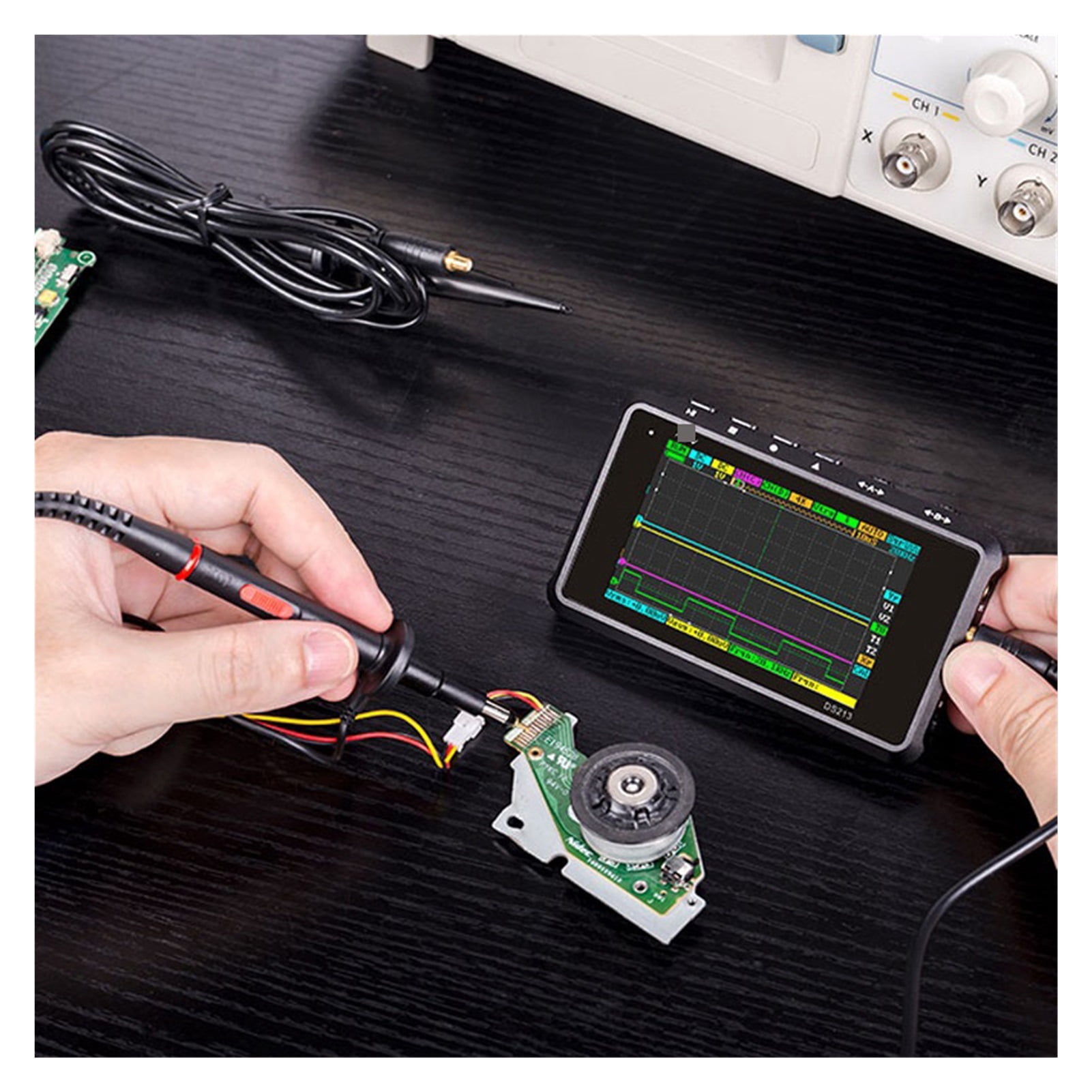

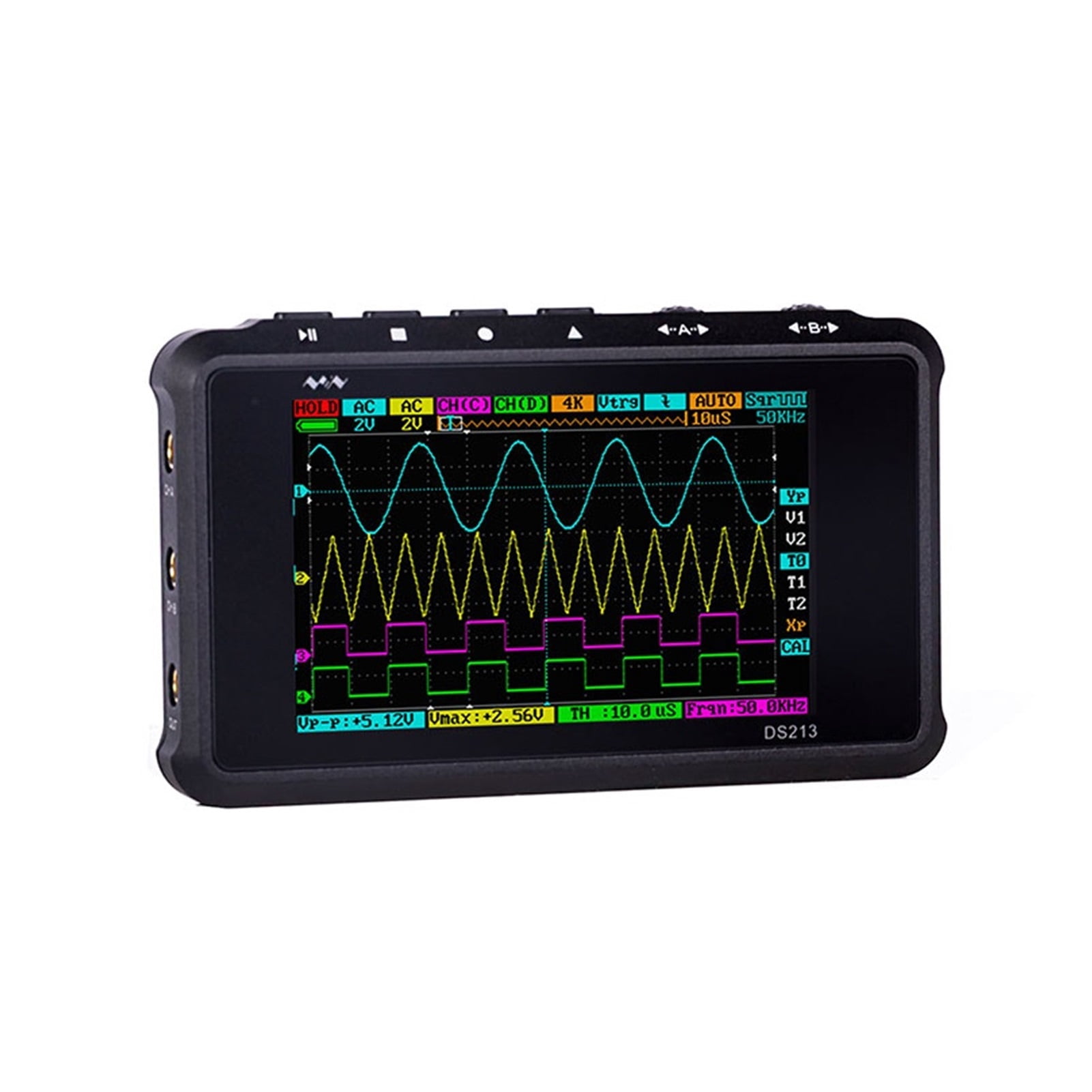

• DS213 is a "5-track, 4-wave line" digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADC's control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware according to their needs.
• Product Features:
• Mini size, light weight, portable and handheld;
• It can store waveforms, making waveform analysis clearer and more effective;
• Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;
• Powerful ability to process waveforms, it can automatically measure parameters such voltage, frequency and pulse width.
• Technical Specifications:
• CPU: STM32F103VE
• FIFO & Control FPGA
• ADC HWD9288100
• Analog Channels 2(CH_A CH_B)
• Digital Channels: 2(CH_C CH_D)
• Operation Channel: INV (CH_A), INV (CH_B), (CH_A)+(CH_B), (CH_A)-(CH_B),(CH_C)&CHD(CH_C), (CH_D)
• Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe)
• 100mV-100V/div (1-2-5 STEP) (using X10 probe)
• Vertical Resolution: 8 bits
• Sample Memory Depth: 4 channels, 4*4K
• Coupling: DC, AC
• Max Input Voltage: ±40Vpp (using X1 probe)
• ±400Vpp (using X10 probe)
• Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic Trigger
• Trigger Mode: Auto, Normal, Single, Slow
• Trigger Source: (CH_A) (CH_B) (CH_C) (CH_D)
• Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shifts and 3 Vpp Signal Sources;
• Sine/Triangle/Sawtooth Wave: 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources
• Storage: built in 8M USB disk
• File Types: BMP,BUF,CSV
• Auto Measurement Types: Signal sequence/cycle/duty ratio, max voltage/virtual value/max value/min value/average
• Cursor Measurement: Time value, Amplitude value
• Modes: 4 wave lines: Line 1: (CH_A), HIDE
• Line 2: (CH_B), HIDE
• Line 3: (CH_C), REC_1, REC _2, REC _3, REC _4, HIDE
• Line 4: (CH_D), (CH_A)+(CH_B), (CH_A)-(CH_B), (CH_C)&CHD (CH_C)(CH_D), HIDE
• Sampling Mode: Real-time Sampling
• Sampling Rate: 100M Sa/s
• Battery: 1000mAh
• Size: 99.5mmx58.5mmx13.5mm/3.92x2.3x0.53"
• Weight: 129g

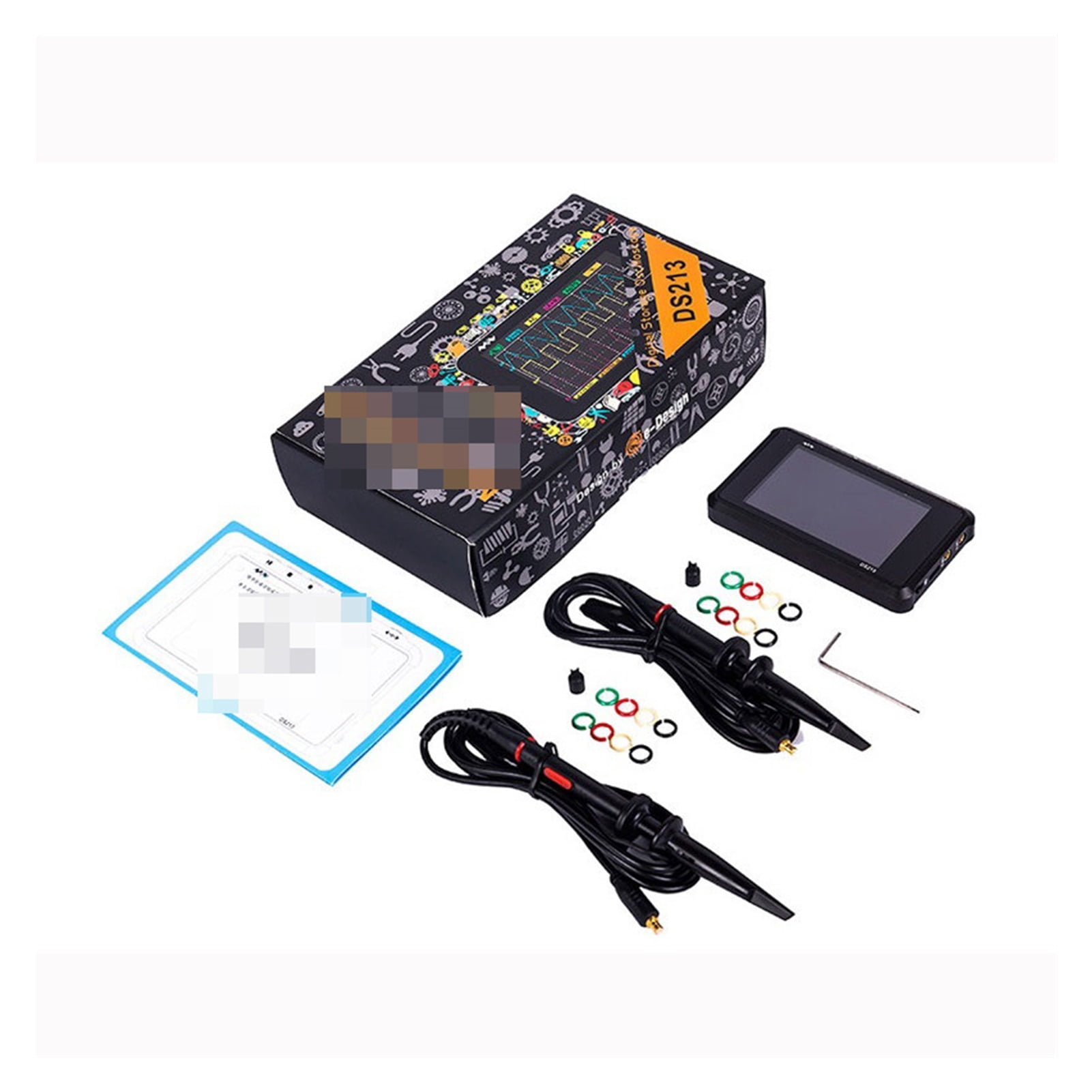

• Package Included:
• 1 x DS213 Digital Oscilloscope
• 1 x X10 Probe
• 1 x X1 Probe
• 1 x Bag

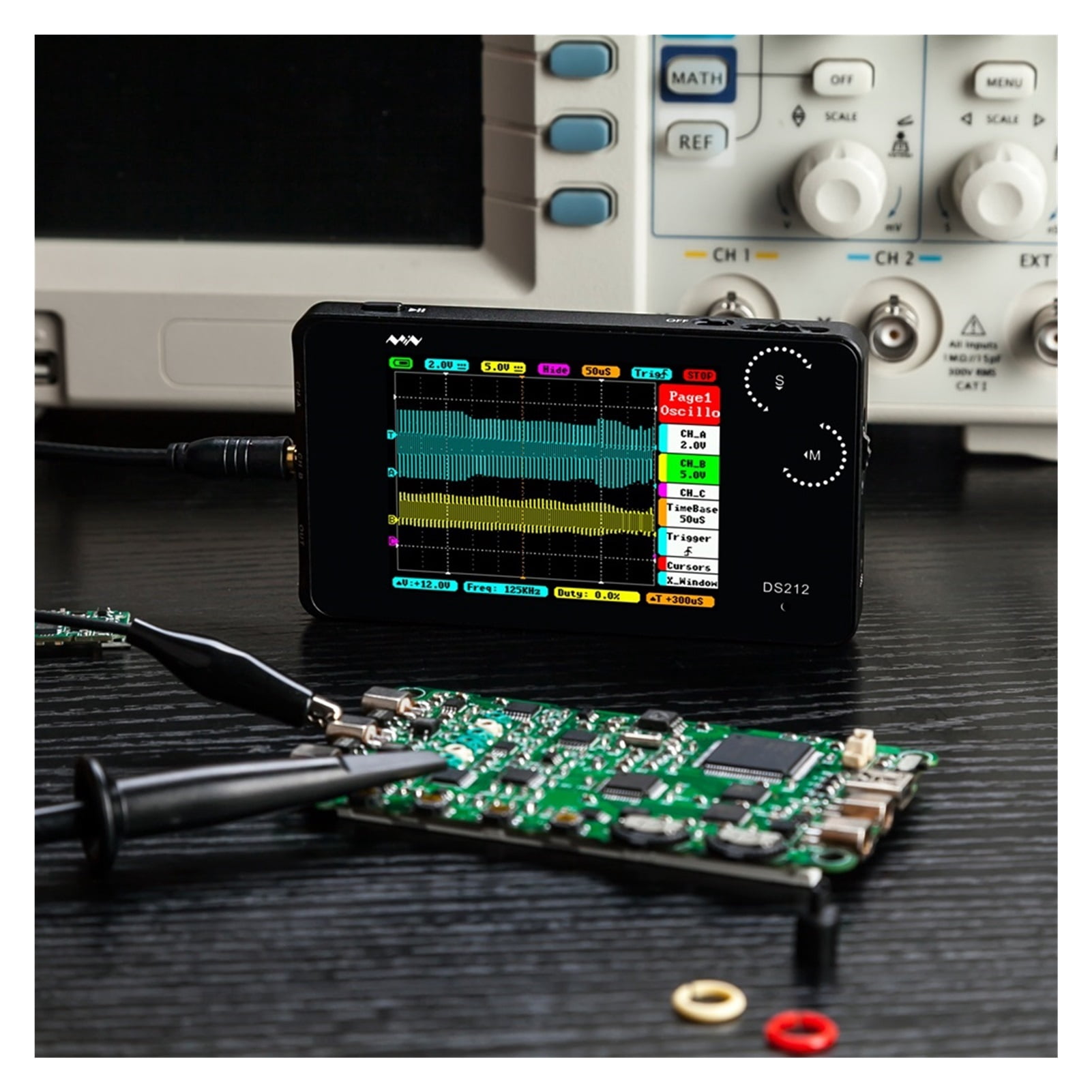

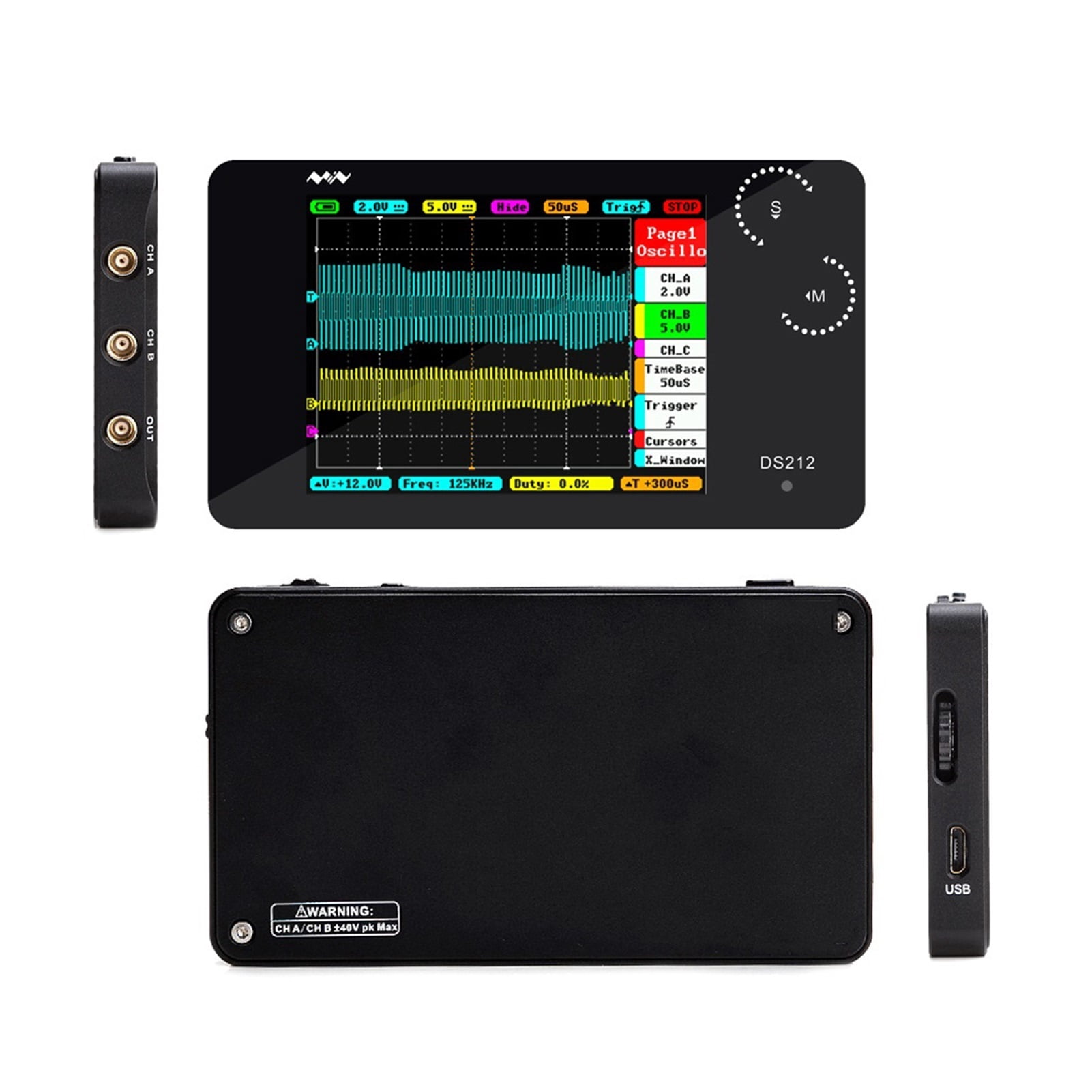

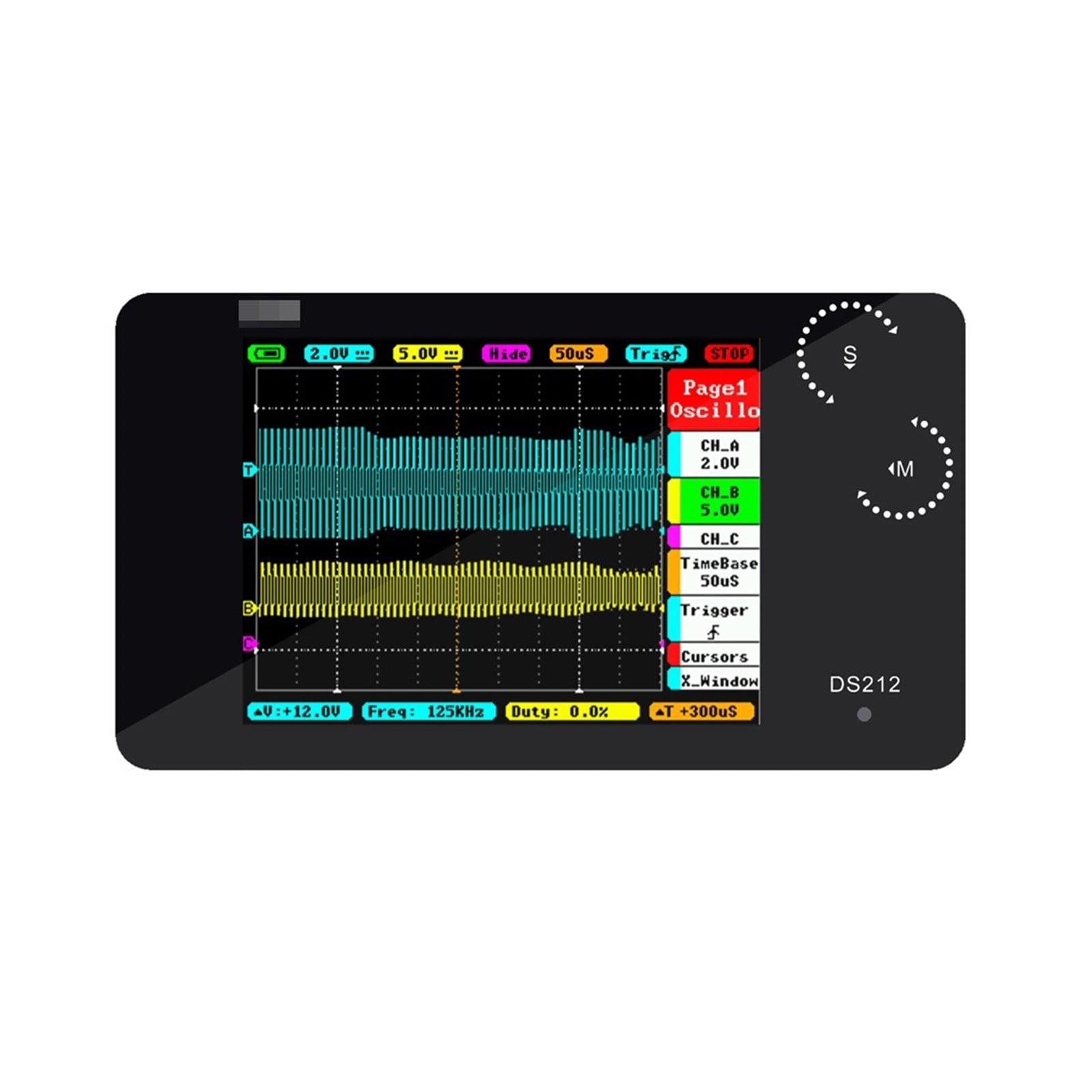

• Product parameters:
• Storage:Inbuilt 8MB U disk storage for waveform data and images
• Battery:Internal 500mAh Lithium battery, external USB port
• :Color TFT LCD (320X240 pixels)
• Package list:
• 1x Ocilliscope;
• 1x MCX combined Probe;
• 1x User Manual English
• 1x Bag
