AUTOOL Digital Manifold Gauge Set HVAC Vacuum Pressure Gauge Tester Automotive Air-Conditioning Refrigeration Diagnostic Repair Tool Kit W/ 89 Types R134a R410a Refrigerants for All Vehicles, LM110+

AUTOOL LM110+ digital manifold gauge set is the auxiliary equipment for the installation, testing, and maintenance of refrigeration equipment, which can be applied to different scenario operations. (e.g. air conditioners and cold storage). It mainly has three major functions, refrigerant filling &amp; testing, vacuuming operation &amp; testing leak, testing of refrigeration system pressure, which can be more convenient to meet different needs. It is designed with viewable window and supports digital display, which can display the current pressure of the refrigeration system, the leakage pressure, and the detection time in real-time, allowing a more intuitive diagnosis of the leakage situation (refrigeration system). <p></p> <p>In order to better meet your needs and preferences, AUTOOL has developed several different HVAC digital manifold gauge. And in order to help you choose and buy the machine that suits you more quickly, we provide shopping shelves in this category for you to choose from. If necessary, you can click the link below to learn more!</p> <p></p> <p><a href="https://www.walmart.com/brand/autool/hvac-gauge/10021878" rel="nofollow">AUTOOL HVAC Digital Manifold Gauge Series&gt;&gt;</a></p> <p></p>

• AUTOOL LM110+ Digital Manifold Gauge Set Features: Practical Functions & Thoughtful Design

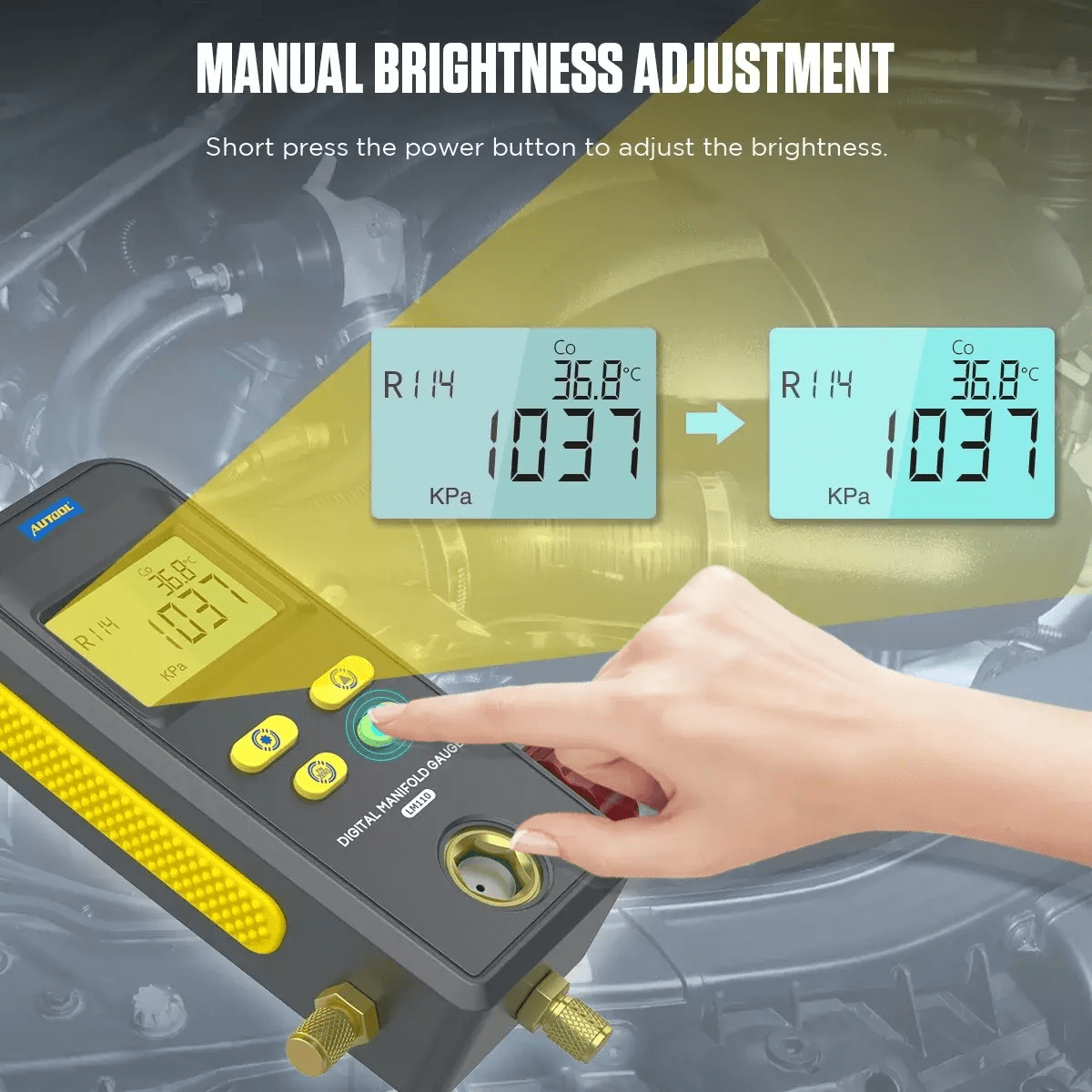

  Our air conditioning maintenance tool come with LCD large size liquid crystal screen, data display clear and easy to read, short-press the power key for 2 seconds switch the backlight on and off. And by default,the system automatically turns off after 10 minutes of inactivity. The foldable hook assures a secure attachment of the digital manifold for care-free and hands-free, let you free your hands to concentrate on testing.

  Built-in 89 kinds of Refrigerant NIST:

  AUTOOL LM110+ digital manifold gauge built-in 89 kinds of refrigerant pressure-evaporation temperature database, include R134a refrigerant and R410a refrigerant ect, which is available to work for automobile air conditioner, household air conditioning, cold storage, and refrigeration equipment.

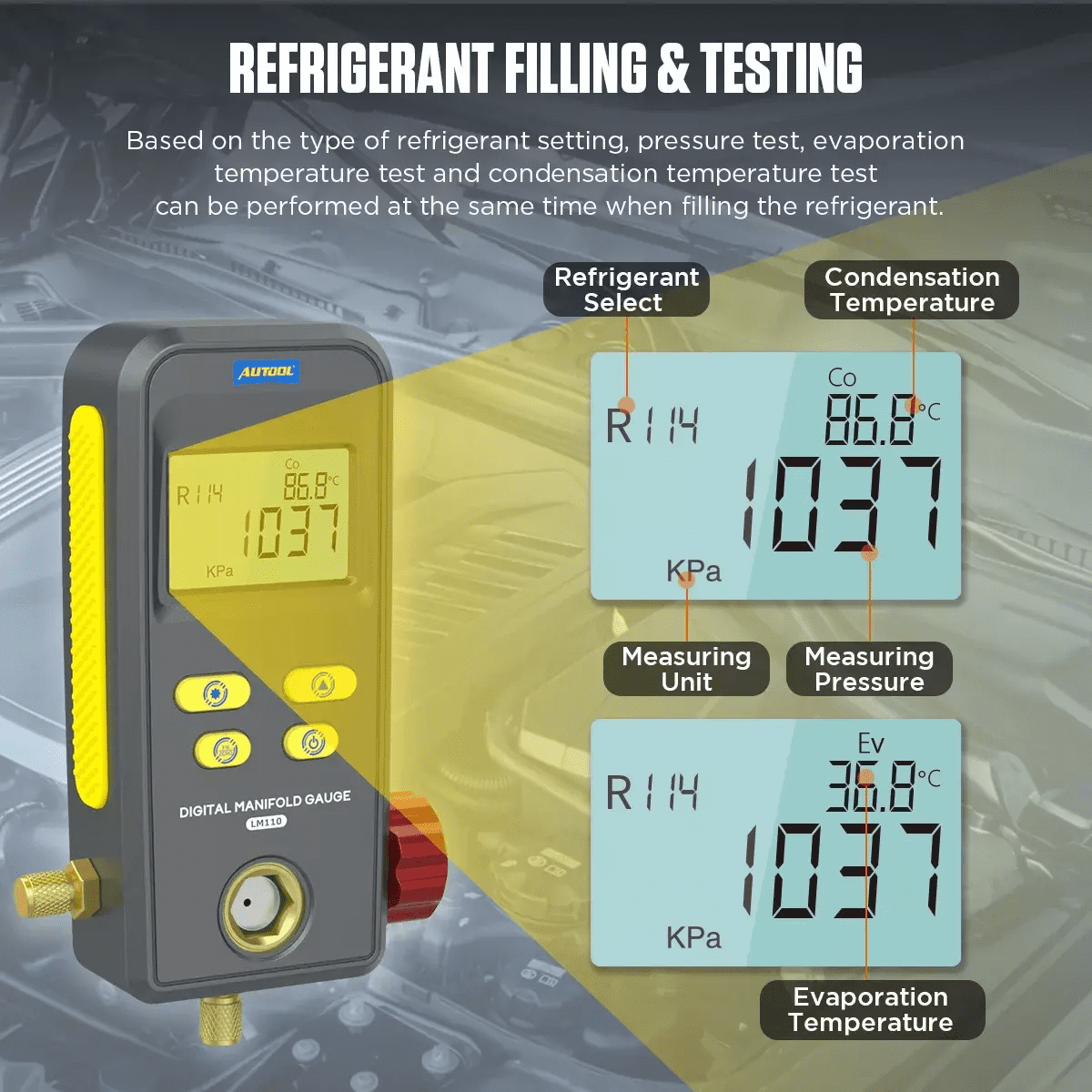

  Refrigerant Filling & Testing:

  AUTOOL LM110+ digital refrigerant gauge great tool for refrigeration charging. Based on the type of refrigerant setting, the pressure test, evaporation temperature test, and condensation temperature test can be performed at the same time when filling the refrigerant.

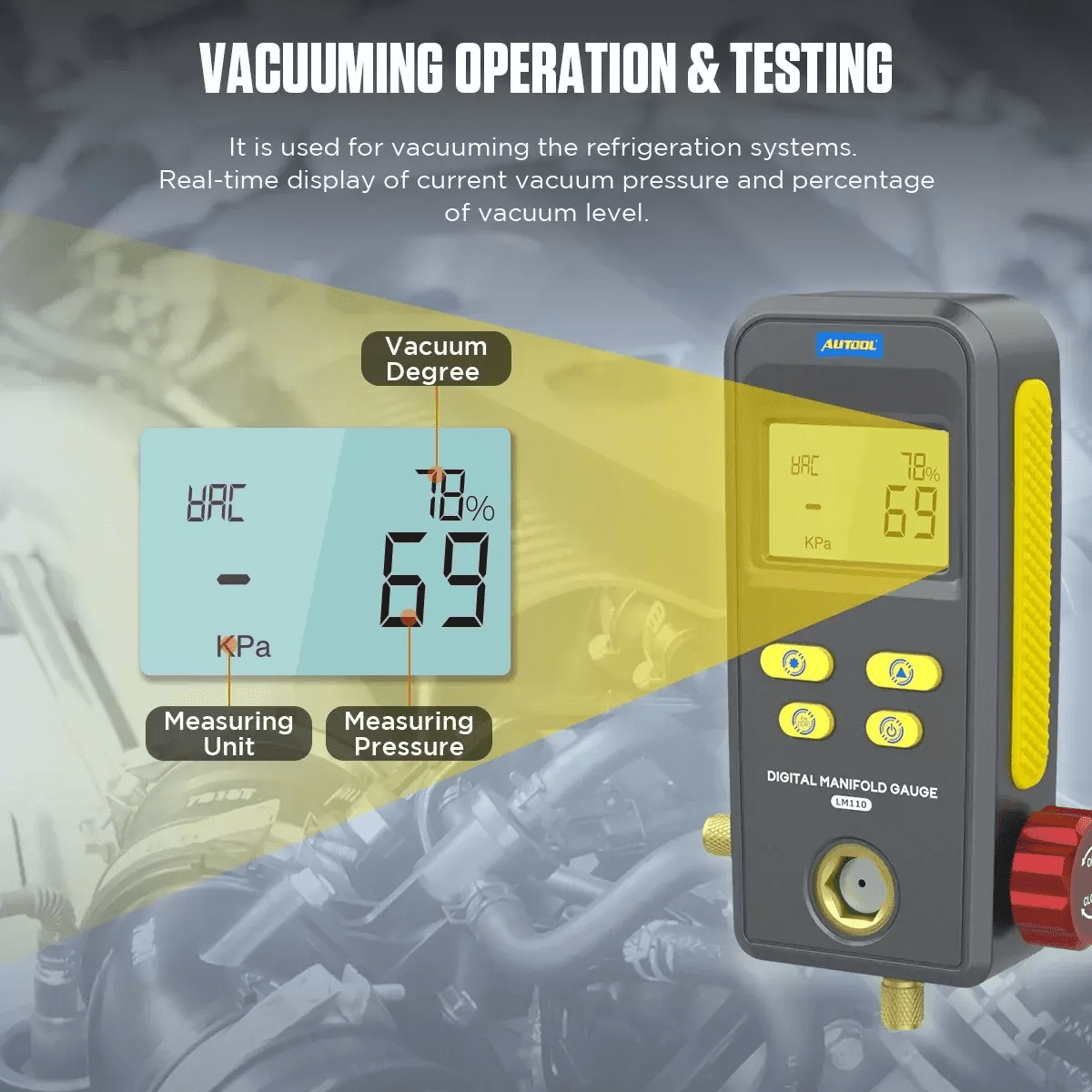

  Vacuuming Operation & Testing:

  AUTOOL LM110+ Digital Refrigeration Manifold Gauge can be used for vacuuming refrigeration systems, as well as real-time display of current vacuum pressure and percentage of the vacuum level.

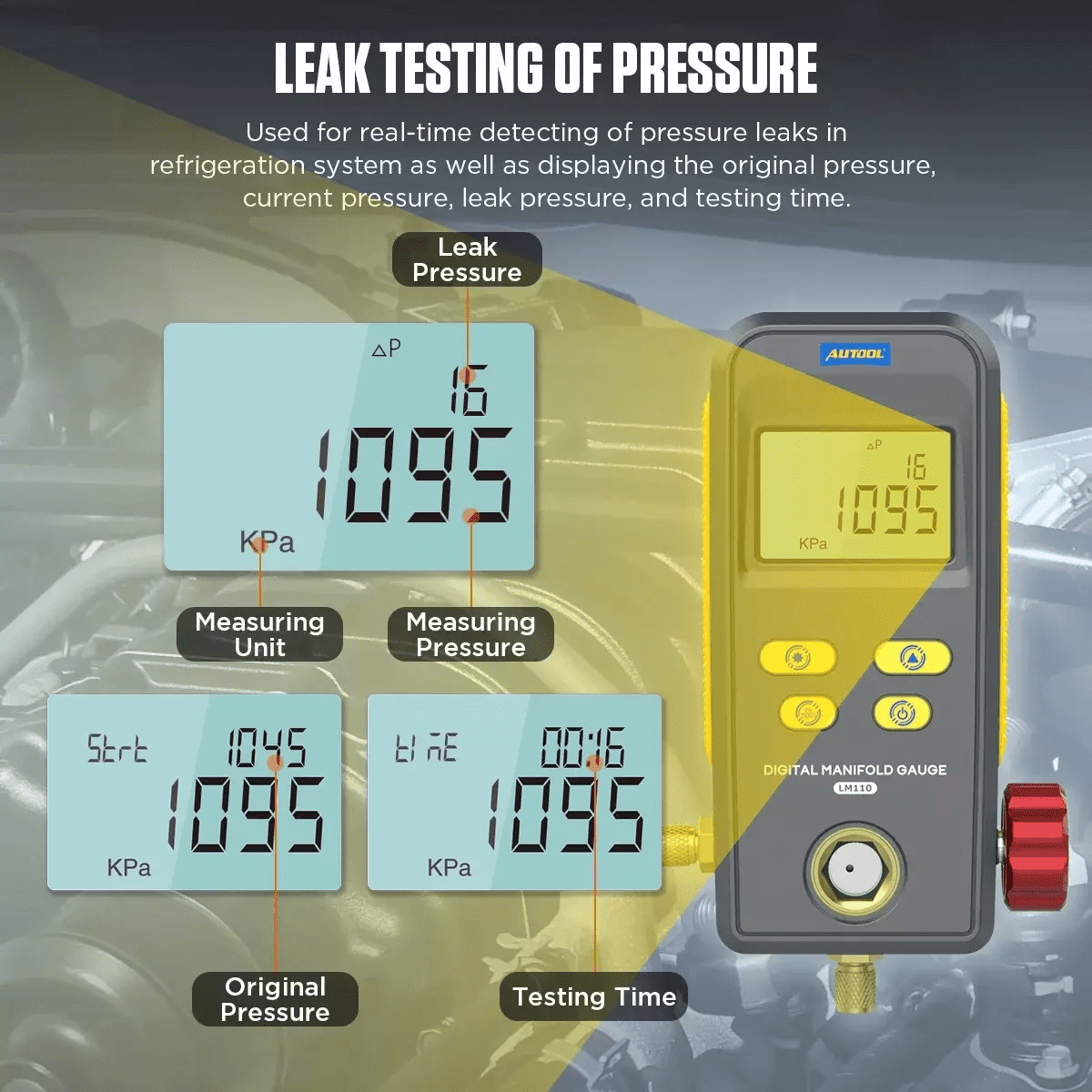

  Leak Testing of Pressure:

  LM110+ HVAC vacuum pressure gauge used for real-time detecting of pressure leaks in the refrigeration system as well as displaying the original pressure, current pressure, leak pressure, and testing time.

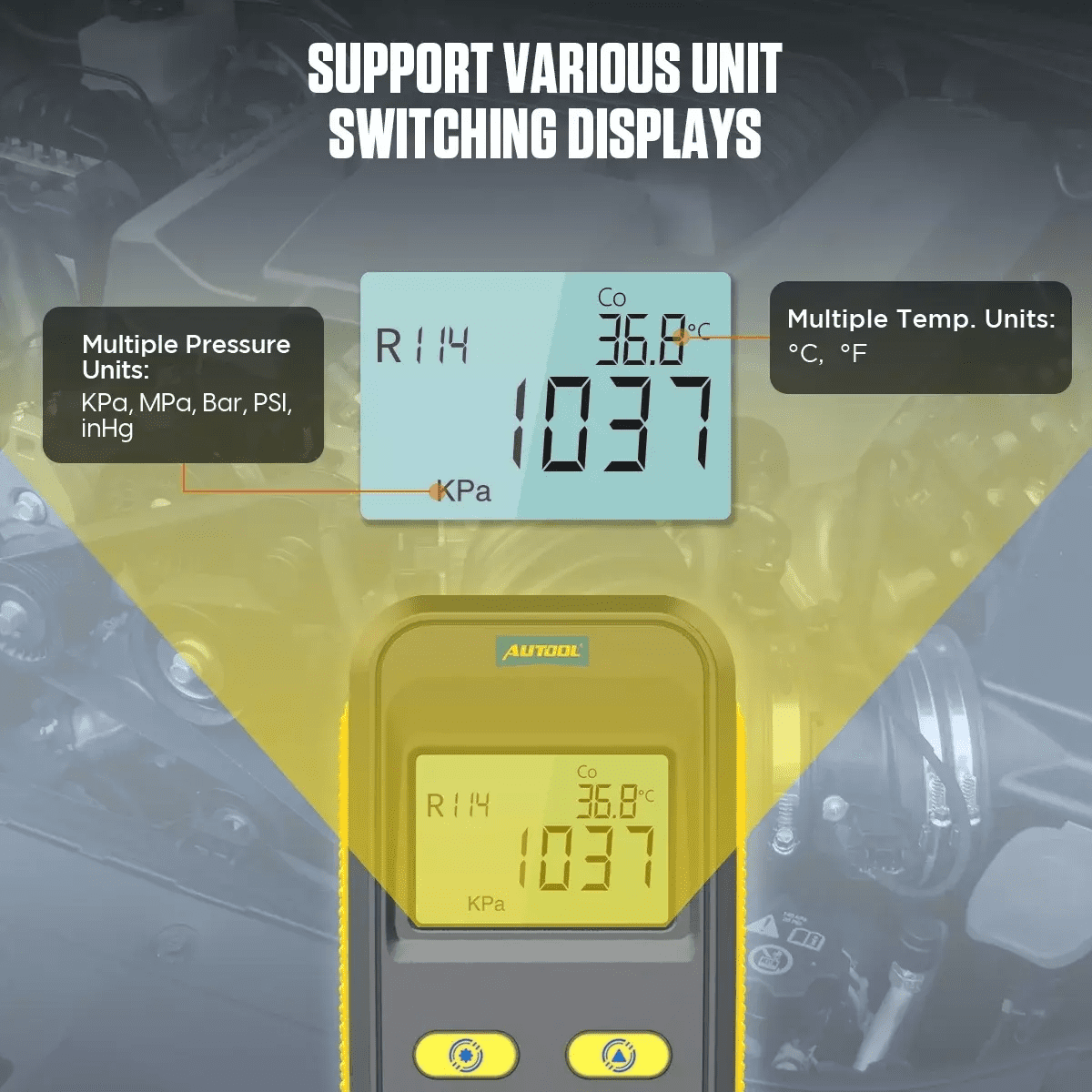

  Multiple Units Switchable:

  AUTOOL LM110+ comes with various pressure and temperature units conversion function, KPa, Bar, PSI, InHg, Kg, F/cm², Celsius, Fahrenheit, which can be easily switched as required and meet you different needs.

• AUTOOL LM110+ HVAC Pressure Gauge Kit Functions:

  1. Refrigerant Filling & Testing.

  2. Vacuuming Operation & Testing.

  3. Leak Testing of Refrigeration System Pressure.

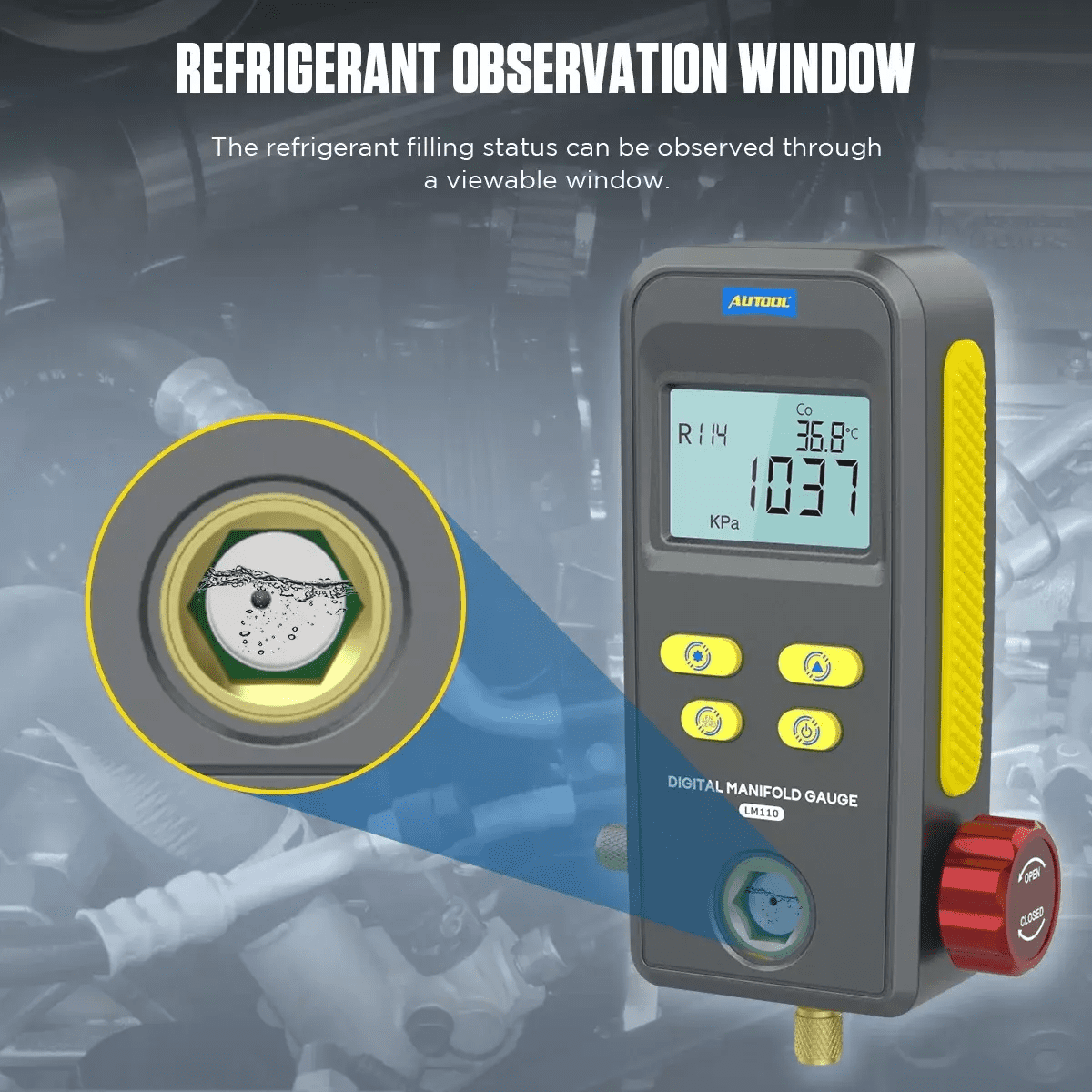

  4. Refrigerant Observation Window.

  5. Built-in 89 kinds of Refrigerant Datas.

  6. Multi Unit Switch: Pressure units:KPa, Bar, Mpa,PSI, InHg, Temperature units:°C,°F.

  7. LCD High-Definition Backlit Large Screen

  8. Usage: for Automobile Air Conditioning, Household Air Conditioning, Cold Storage, Refrigeration Equipment.

  9. Hook Design, Can Be Hung Directly On The Hood

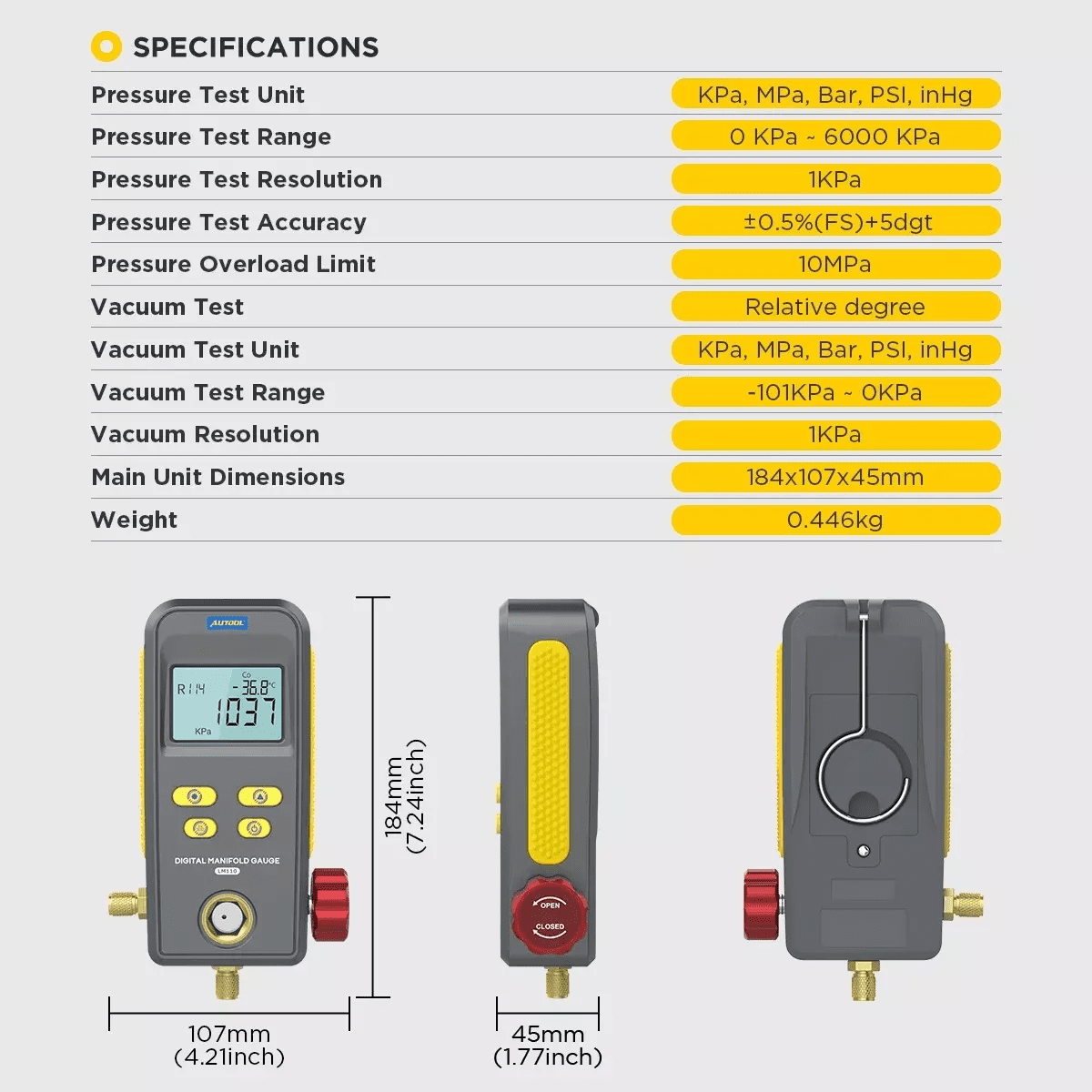

• AUTOOL LM110+ Digital Manifold Gauge Specification: Pressure Test Range: 0 Kpa ~ 6000 Kpa Pressure Test Resolution: 1 Kpa Pressure Test Accuracy: ±0.5%(FS)+5dgt Pressure Overload Limit: 10000 Kpa (10 Mpa; 100 Bar) Vacuum Test: Relative Vacuum Vacuum Test Range: -101 Kpa~0 Kpa Vacuum Test Resolution: 1 Kpa Temperature Test Range: -40℃~150℃ (-40℉~302℉) Temperature Test Resolution: 0.1℃(-40℃~99.9℃), 1℃ (100℃~150℃), 0.1℉ (-40℉~99.9℉), 1℉ (100℉~302℉) Temperature Test Accuracy: +/- 0.5℃+ 2dgt +/- 0.9℉+ 2dgt Pressure Units: KPa, Bar, Mpa,PSI, InHg Temperature Units:°C,°F Auto Power off Function: 10min Dimension: 7.24 x 4.21 x 1.77" Weight: 0.98 lbs

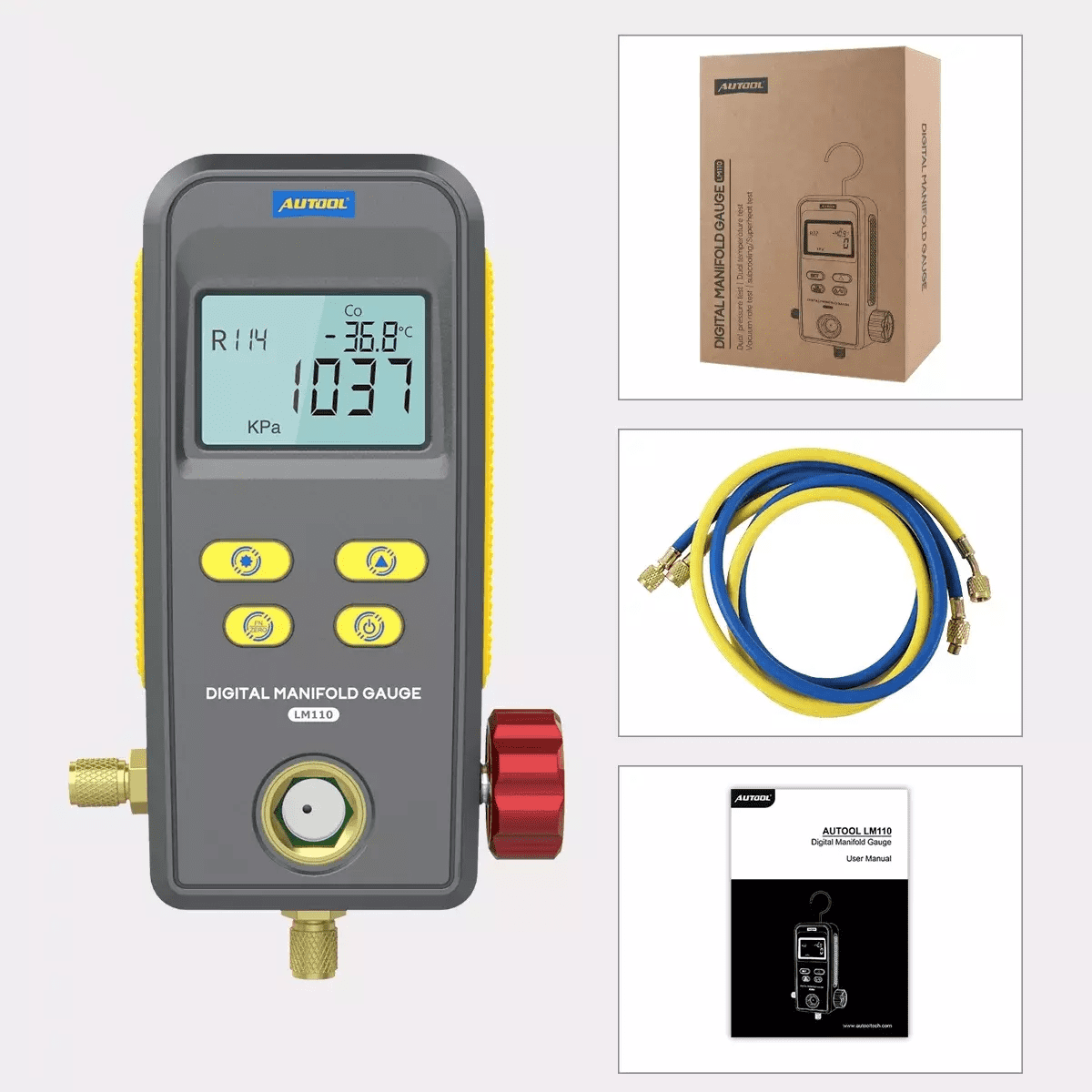

• Package Includes: 1 x HVAC Digital Manifold Gauge 2 x Refrigeration Tube 1 x User Manual

• Notices: Please operate in accordance with the operating instructions or the professional personnel guide. Before using the HVAC gauge, please make sure that refrigerant hoses and temperature sensor clamps are connected properly. Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument. Please wear qualified protective equipment to protect user during testing. Please handle gently to avoid shock and fall. After use, please close all the buttons to improve the service life. Plug the joint when not in use, to prevent foreign bodies from entering, please clean and regularly replace the refrigerant tube, remove dirt and impurities in the valve. The pressure gauge is a perishable product, you need to check it regularly to ensure its accuracy. Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
