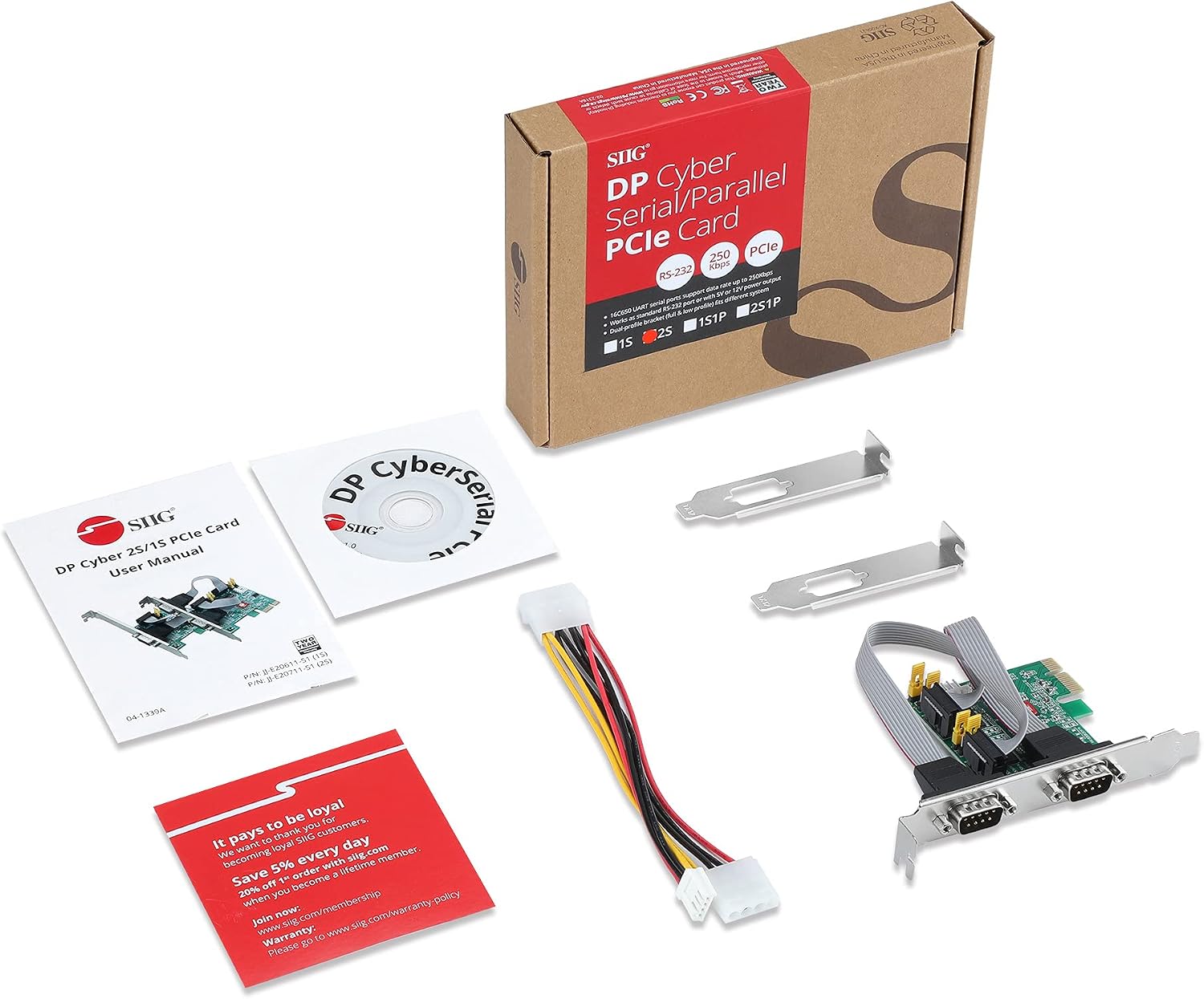

SIIG Dual Serial PCIe Card Adapter, 16650 UART, Baud Rates up to 250Kbps, PCIe 2.0 x1 to 2X RS-232 Male 9-pin DB9, RS-232 5V or 12V Power, ASIX AX99100 Chipset, Dual-Profile Brackets (JJ-E20711-S1)
4.0 (53 items)
Limited Time Sale$17.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 239451913 | Release Date | 2026/07/14 | List Price | $12.00 | Model Number | 239451913 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Adds two 9-pin RS-232 serial port to PCIe enabled desktop computers, each port supports data transfer rate up to 250Kbps, Compliant with PCI Express 2.0 Gen 1
- Single-lane (x1) PCI Express End-point Controller with PHY integrated; Full serial modem control with hardware and software flow control; Supports 5, 6, 7, 8 and 9-bit serial formats, and Even, Odd, None, Space and Mark parity; On chip 256-byte FIFO buffers in transmit and receive path for each serial port
- Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
- Supports PCI Bus Power Management Interface Specification Revision 1.2; Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets; Installs into any PCI Express slot of any lane width
- Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc
| UPC | 662774044095 |
|---|---|
| ASIN | B08ZXQLZ4T |
| Brand | SIIG |
| Style Name | Music |
| Unit Count | 1.0 Count |
| Item Weight | 0.1 Pounds |
| Manufacturer | SIIG |
| Model Number | DHJJE20711S1 |
| Mfr Part Number | JJ-E20711-S1 |
| Operating System | Windows Server |
| Compatible Devices | Printers, Scanners, POS Systems, Industrial Testing and Control Devices, Security Systems, Logistic Management Equipment, Personal Computers, Laptops |
| Hardware Interface | PCI |
| Warranty Description | 2 Year Limited |
