Dual Oculink SFF-8612 SFF-8611 to M.2 NGFF M-Key NVME PCIe SSD 2280 22110mm Adapter for Mainboard

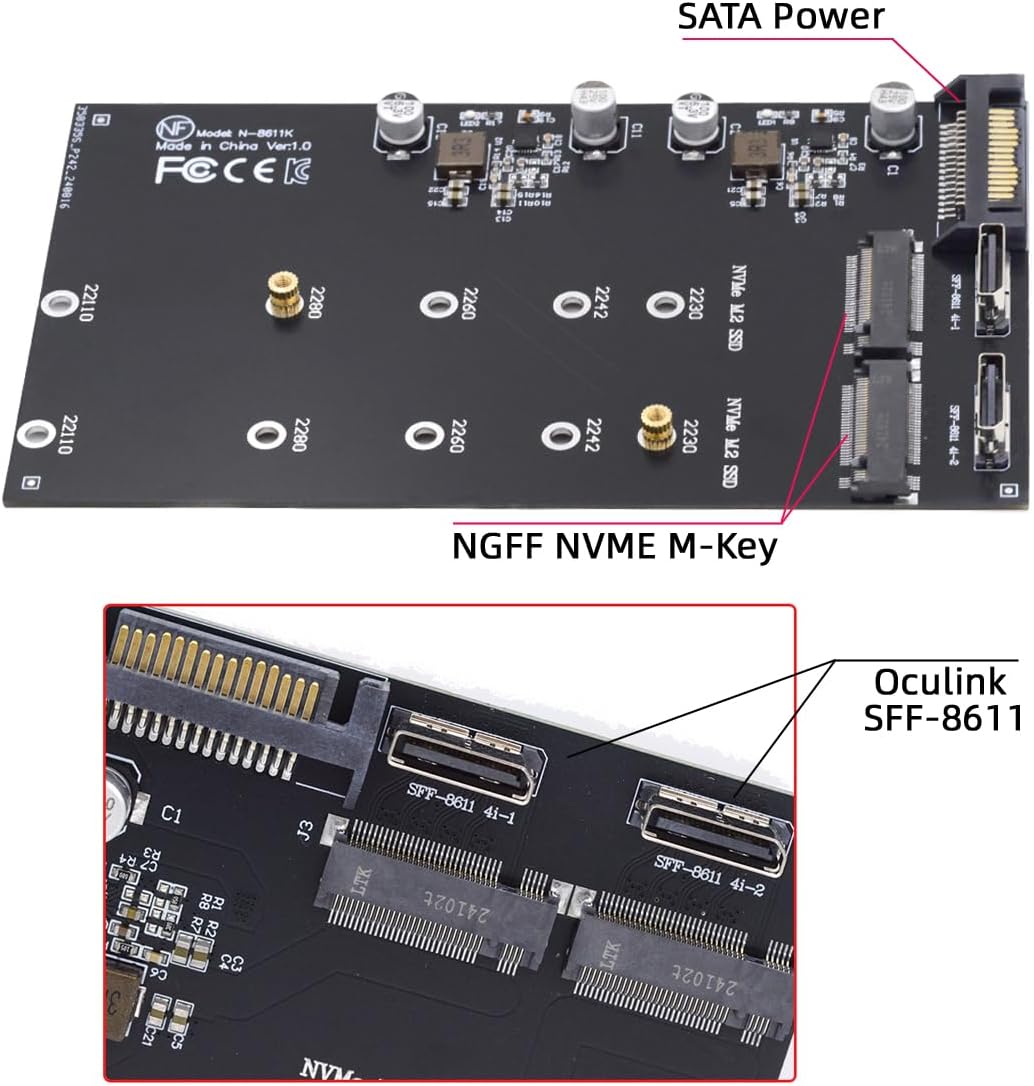

Dual Oculink SFF-8612 SFF-8611 to M.2 NGFF M-Key NVME PCIe SSD 2280 22110mm Adapter for MainboardOculink 4x connectors are internal and external small form factor PCI-E connectors and cables optimized for the client and market.Hyper Kit Storage controller,Ultra PCI-E oculink interface (PCIe 4.0/5.0 x4),The card work for PCI-E NVME SSD.(Not work for SAS or Slimeline SAS HD)This M.2 converter enables belowing applications: Dual M.2 NVME PCIe SSD in 2280, 2260, 2242 and 2230 format can be connected,The converter can be installed into the system internally through Dual SFF-8611/8612 oculink interface. and the SATA power is required.The converter work for one oculink and one NVME, or Two oculink and two NVME.This oculink M.2 converter can't convert NVME to SATA/SAS, also can't covert NGFF/SATA/SAS to Oculink.

• Oculink 4x connectors are internal and external small form factor PCI-E connectors and cables optimized for the client and market.
• Hyper Kit Storage controller,Ultra PCI-E oculink interface (PCIe 4.0/5.0 x4),The card work for PCI-E NVME SSD.(Not work for SAS or Slimeline SAS HD)
• This M.2 converter enables belowing applications: Dual M.2 NVME PCIe SSD in 2280, 2260, 2242 and 2230 format can be connected,The converter can be installed into the system internally through Dual SFF-8611/8612 oculink interface. and the SATA power is required.
• The converter work for one oculink and one NVME, or Two oculink and two NVME;This oculink M.2 converter can't convert NVME to SATA/SAS, also can't covert NGFF/SATA/SAS to Oculink.
• It transmits PCI Express 4.0 signals using the PCIE protocol; Support PCIE 4.0 data transmission, Data transfer rate up to 64Gbps, Support connecting GPU graphics card, SSD, expansion card, etc., backward compatible with PCIE 3.0.
